Quality Metric and Imperial and Special Bore Ball Bearings

^{See how bearings are made}

Please select your bearing sizes and options ...	[x] Reset

Displaying 1 to 25 (of 6299 products)


625 Budget Open Type Deep Groove Ball Bearing 5x16x5mm Also Known As: Inside Diameter: 5mm Outside Diameter: 16mm Width: 5mm Seals / Shields: None *Clearance: Standard**	From £1.13 ex. VAT	Enlarge View Click Here
635 Budget Open Type Deep Groove Ball Bearing 5x19x6mm Also Known As: Inside Diameter: 5mm Outside Diameter: 19mm Width: 6mm Seals / Shields: None *Clearance: Standard**	From £1.21 ex. VAT	Enlarge View Click Here
624 Budget Open Type Deep Groove Ball Bearing 4x13x5mm Also Known As: Inside Diameter: 4mm Outside Diameter: 13mm Width: 5mm Seals / Shields: None *Clearance: Standard**	From £1.23 ex. VAT	Enlarge View Click Here

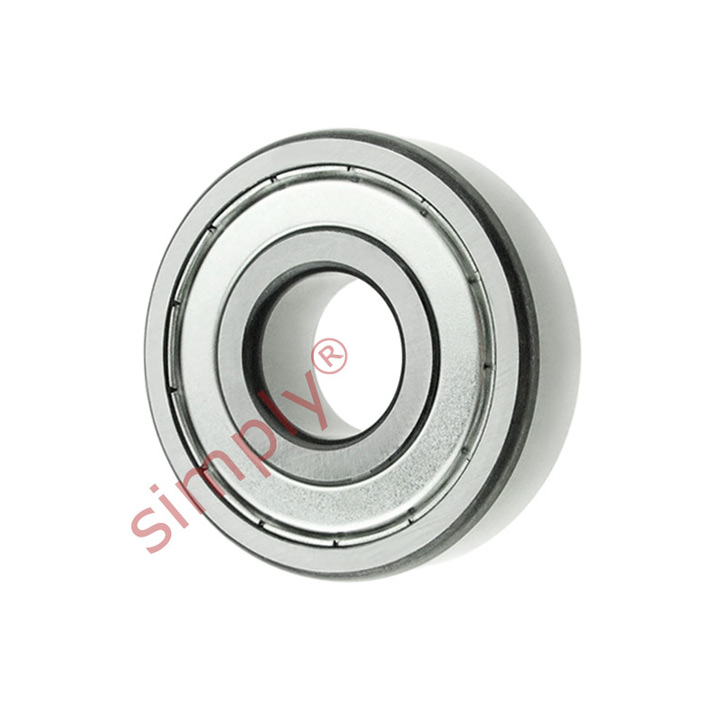

635ZZ Budget Metal Shielded Deep Groove Ball bearing 5x19x6mm Also Known As: 6352Z 635Z Inside Diameter: 5mm Outside Diameter: 19mm Width: 6mm Seals / Shields: Metal Shielded *Clearance: Standard**	From £1.35 ex. VAT	Enlarge View Click Here
623 Budget Open Type Deep Groove Ball Bearing 3x10x4mm Also Known As: Inside Diameter: 3mm Outside Diameter: 10mm Width: 4mm Seals / Shields: None *Clearance: Standard**	From £1.37 ex. VAT	Enlarge View Click Here
608 Budget Open Type Deep Groove Ball Bearing 8x22x7mm Also Known As: Inside Diameter: 8mm Outside Diameter: 22mm Width: 7mm Seals / Shields: None *Clearance: Standard**	From £1.49 ex. VAT	Enlarge View Click Here
607 Budget Open Type Deep Groove Ball Bearing 7x19x6mm Also Known As: Inside Diameter: 7mm Outside Diameter: 19mm Width: 6mm Seals / Shields: None *Clearance: Standard**	From £1.50 ex. VAT	Enlarge View Click Here
634 Budget Open Type Deep Groove Ball Bearing 4x16x5mm Also Known As: Inside Diameter: 4mm Outside Diameter: 16mm Width: 5mm Seals / Shields: None *Clearance: Standard**	From £1.51 ex. VAT	Enlarge View Click Here
627 Budget Open Type Deep Groove Ball Bearing 7x22x7mm Also Known As: Inside Diameter: 7mm Outside Diameter: 22mm Width: 7mm Seals / Shields: None *Clearance: Standard**	From £1.51 ex. VAT	Enlarge View Click Here
634ZZ Budget Metal Shielded Deep Groove Ball bearing 4x16x5mm Also Known As: 6342Z 634Z Inside Diameter: 4mm Outside Diameter: 16mm Width: 5mm Seals / Shields: Metal Shielded *Clearance: Standard**	From £1.51 ex. VAT	Enlarge View Click Here
626 Budget Open Type Deep Groove Ball Bearing 6x19x6mm Also Known As: Inside Diameter: 6mm Outside Diameter: 19mm Width: 6mm Seals / Shields: None *Clearance: Standard**	From £1.52 ex. VAT	Enlarge View Click Here
609 Budget Open Type Deep Groove Ball Bearing 9x24x7mm Also Known As: Inside Diameter: 9mm Outside Diameter: 24mm Width: 7mm Seals / Shields: None *Clearance: Standard**	From £1.55 ex. VAT	Enlarge View Click Here
629 Budget Open Type Deep Groove Ball Bearing 9x26x8mm Also Known As: Inside Diameter: 9mm Outside Diameter: 26mm Width: 8mm Seals / Shields: None *Clearance: Standard**	From £1.59 ex. VAT	Enlarge View Click Here
628ZZ Budget Metal Shielded Deep Groove Ball bearing 8x24x8mm Also Known As: 6282Z 628Z Inside Diameter: 8mm Outside Diameter: 24mm Width: 8mm Seals / Shields: Metal Shielded *Clearance: Standard**	From £1.60 ex. VAT	Enlarge View Click Here
627ZZ Budget Metal Shielded Deep Groove Ball bearing 7x22x7mm Also Known As: 6272Z 627Z Inside Diameter: 7mm Outside Diameter: 22mm Width: 7mm Seals / Shields: Metal Shielded *Clearance: Standard**	From £1.65 ex. VAT	Enlarge View Click Here
626ZZ Budget Metal Shielded Deep Groove Ball bearing 6x19x6mm Also Known As: 6262Z 626Z Inside Diameter: 6mm Outside Diameter: 19mm Width: 6mm Seals / Shields: Metal Shielded *Clearance: Standard**	From £1.66 ex. VAT	Enlarge View Click Here
608ZZ Budget Metal Shielded Deep Groove Ball bearing 8x22x7mm Also Known As: 6082Z 608Z Inside Diameter: 8mm Outside Diameter: 22mm Width: 7mm Seals / Shields: Metal Shielded *Clearance: Standard**	From £1.67 ex. VAT	Enlarge View Click Here
607ZZ Budget Metal Shielded Deep Groove Ball bearing 7x19x6mm Also Known As: 6072Z 607Z Inside Diameter: 7mm Outside Diameter: 19mm Width: 6mm Seals / Shields: Metal Shielded *Clearance: Standard**	From £1.69 ex. VAT	Enlarge View Click Here
609ZZ Budget Metal Shielded Deep Groove Ball bearing 9x24x7mm Also Known As: 6092Z 609Z Inside Diameter: 9mm Outside Diameter: 24mm Width: 7mm Seals / Shields: Metal Shielded *Clearance: Standard**	From £1.73 ex. VAT	Enlarge View Click Here
629ZZ Budget Metal Shielded Deep Groove Ball bearing 9x26x8mm Also Known As: 6292Z 629Z Inside Diameter: 9mm Outside Diameter: 26mm Width: 8mm Seals / Shields: Metal Shielded *Clearance: Standard**	From £1.76 ex. VAT	Enlarge View Click Here
6272RS Budget Rubber Sealed Deep Groove Ball bearing 7x22x7mm Also Known As: 6272RSH 627RS Inside Diameter: 7mm Outside Diameter: 22mm Width: 7mm Seals / Shields: Rubber Sealed *Clearance: Standard**	From £1.83 ex. VAT	Enlarge View Click Here
6262RS Budget Rubber Sealed Deep Groove Ball bearing 6x19x6mm Also Known As: 6262RSH 626RS Inside Diameter: 6mm Outside Diameter: 19mm Width: 6mm Seals / Shields: Rubber Sealed *Clearance: Standard**	From £1.85 ex. VAT	Enlarge View Click Here
6082RS Budget Rubber Sealed Deep Groove Ball bearing 8x22x7mm Also Known As: 6082RSH 608RS Inside Diameter: 8mm Outside Diameter: 22mm Width: 7mm Seals / Shields: Rubber Sealed *Clearance: Standard**	From £1.85 ex. VAT	Enlarge View Click Here
6072RS Budget Rubber Sealed Deep Groove Ball bearing 7x19x6mm Also Known As: 6072RSH 607RS Inside Diameter: 7mm Outside Diameter: 19mm Width: 6mm Seals / Shields: Rubber Sealed *Clearance: Standard**	From £1.86 ex. VAT	Enlarge View Click Here
6092RS Budget Rubber Sealed Deep Groove Ball bearing 9x24x7mm Also Known As: 6092RSH 609RS Inside Diameter: 9mm Outside Diameter: 24mm Width: 7mm Seals / Shields: Rubber Sealed *Clearance: Standard**	From £1.92 ex. VAT	Enlarge View Click Here

Displaying 1 to 25 (of 6299 products)

Result Pages: 1 2 3 4 5 6 7 8 9 10 ... [Next >>]

Single Row Deep Groove Ball Bearings are the most commonly used rolling bearings.
The balls run in deep grooves in both the outer and inner rings. This enables the bearing type to accommodate radial loads as well and some axial loads in either direction.

Deep groove ball bearings are especially suitable for high speed applications due to their low friction. They achieve the highest speed ratings of all rolling bearing types. Deep groove ball bearings are available in a wide variety of designs with different shields and seals. This enables greased For Life bearings, maintenance free, and more efficient designs.

Other Classifications of single row deep grooved ball bearing are, Miniature Bearings - up to and including 3.175 mm inner bore diameter
Extra Small Bearings - over 3.175 mm up to and including 9.525 mm inner bore diameter

Max Type Bearings - greater number of balls than normal allowing higher radial loads, with limited axial loads in one direction. For more information see Max Types.

Double Row Deep Groove Ball Bearing have higher radial load ratings than single row bearings and a very rigid bearing support. The older design of the double row deep groove ball bearings, fitted with a pressed steel cage, have filling slots in one face and therefore, is less suitable for axial loads in this direction.
The latest designs, usually fitted with polyamide cages, no longer have such filling slots. Therefore some axial load is equally possible in either direction.
Double row deep groove ball bearings are very sensitive to misalignment.

Please observe our image copyrights.

Magneto Bearings have an internal design similar to the single row deep groove ball bearings. The outer ring is counter-bored, which makes it separable and easy to mount.
Magneto bearings are suitable for applications where low loads and high speeds occur.

All information courtesy NKE Bearings Austria www.nke.at
