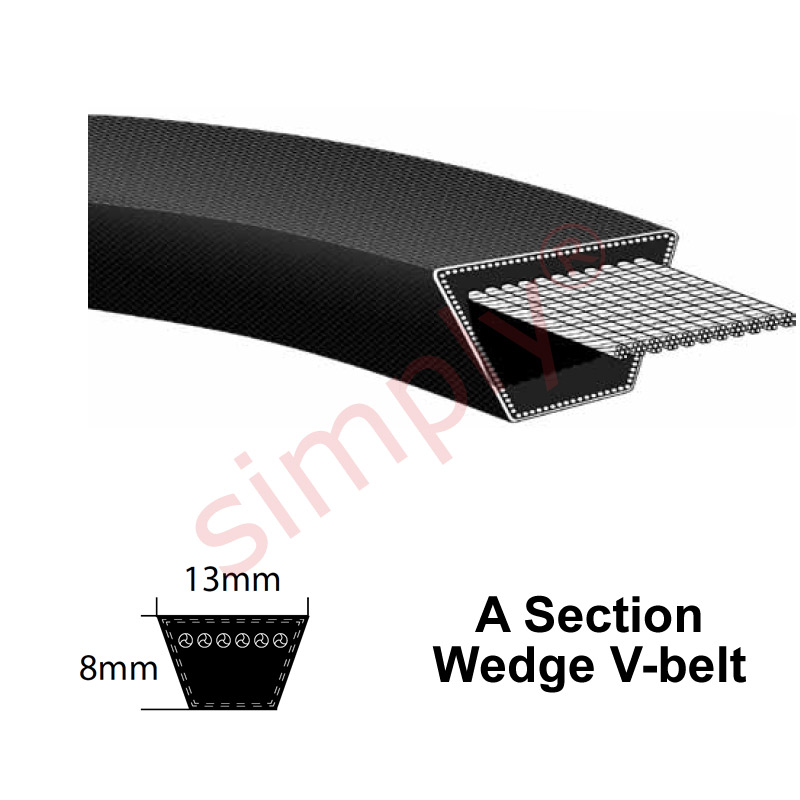

Quality A Section V Belts - 13x8mm

Please select your sizes and options ...	[x] Reset

Displaying 1 to 25 (of 162 products)


A15 Major Brand A-Section V-Belt Also Known As: PHGA15 A488 Belt Number: A15 Inside Length Approx: 15 inch = 381mm Outside Length Approx: 17 inch = 432mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £3.55 ex. VAT	Enlarge View Click Here
A16 Major Brand A-Section V-Belt Also Known As: PHGA16 A489 Belt Number: A16 Inside Length Approx: 16 inch = 406mm Outside Length Approx: 18 inch = 457mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £3.62 ex. VAT	Enlarge View Click Here
A18 Major Brand A-Section V-Belt Also Known As: PHGA18 A490 Belt Number: A18 Inside Length Approx: 18 inch = 457mm Outside Length Approx: 20 inch = 508mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £3.74 ex. VAT	Enlarge View Click Here
A19 Major Brand A-Section V-Belt Also Known As: PHGA19 A510 Belt Number: A19 Inside Length Approx: 19 inch = 483mm Outside Length Approx: 21 inch = 533mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £3.85 ex. VAT	Enlarge View Click Here
A20 Major Brand A-Section V-Belt Also Known As: PHGA20 A540 Belt Number: A20 Inside Length Approx: 20 inch = 508mm Outside Length Approx: 22 inch = 559mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £3.90 ex. VAT	Enlarge View Click Here
A20.75 Major Brand A-Section V-Belt Also Known As: PHGA20.75 Belt Number: A20.75 Inside Length Approx: 20.75 inch = 527mm Outside Length Approx: 22.75 inch = 578mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £3.94 ex. VAT	Enlarge View Click Here
A21 Major Brand A-Section V-Belt Also Known As: PHGA21 A570 Belt Number: A21 Inside Length Approx: 21 inch = 533mm Outside Length Approx: 23 inch = 584mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £3.94 ex. VAT	Enlarge View Click Here
A22 Major Brand A-Section V-Belt Also Known As: PHGA22 A590 Belt Number: A22 Inside Length Approx: 22 inch = 559mm Outside Length Approx: 24 inch = 610mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £3.99 ex. VAT	Enlarge View Click Here
A22.5 Major Brand A-Section V-Belt Also Known As: PHGA22.5 Belt Number: A22.5 Inside Length Approx: 22.5 inch = 572mm Outside Length Approx: 24.5 inch = 622mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £4.01 ex. VAT	Enlarge View Click Here
A23 Major Brand A-Section V-Belt Also Known As: PHGA23 A620 Belt Number: A23 Inside Length Approx: 23 inch = 584mm Outside Length Approx: 25 inch = 635mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £4.04 ex. VAT	Enlarge View Click Here
A23.5 Major Brand A-Section V-Belt Also Known As: PHGA23.5 Belt Number: A23.5 Inside Length Approx: 23.5 inch = 597mm Outside Length Approx: 25.5 inch = 648mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £4.11 ex. VAT	Enlarge View Click Here
A24 Major Brand A-Section V-Belt Also Known As: PHGA24 A640 Belt Number: A24 Inside Length Approx: 24 inch = 610mm Outside Length Approx: 26 inch = 660mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £4.13 ex. VAT	Enlarge View Click Here
A25 Major Brand A-Section V-Belt Also Known As: PHGA25 A660 Belt Number: A25 Inside Length Approx: 25 inch = 635mm Outside Length Approx: 27 inch = 686mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £4.17 ex. VAT	Enlarge View Click Here
A26 Major Brand A-Section V-Belt Also Known As: PHGA26 Belt Number: A26 Inside Length Approx: 26 inch = 660mm Outside Length Approx: 28 inch = 711mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £4.22 ex. VAT	Enlarge View Click Here
A26.5 Major Brand A-Section V-Belt Also Known As: PHGA26.5 Belt Number: A26.5 Inside Length Approx: 26.5 inch = 673mm Outside Length Approx: 28.5 inch = 724mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £4.29 ex. VAT	Enlarge View Click Here
A27 Major Brand A-Section V-Belt Also Known As: PHGA27 A720 Belt Number: A27 Inside Length Approx: 27 inch = 686mm Outside Length Approx: 29 inch = 737mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £4.31 ex. VAT	Enlarge View Click Here
A28 Major Brand A-Section V-Belt Also Known As: PHGA28 A740 Belt Number: A28 Inside Length Approx: 28 inch = 711mm Outside Length Approx: 30 inch = 762mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £4.38 ex. VAT	Enlarge View Click Here
A28.5 Major Brand A-Section V-Belt Also Known As: PHGA28.5 Belt Number: A28.5 Inside Length Approx: 28.5 inch = 724mm Outside Length Approx: 30.5 inch = 775mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £4.40 ex. VAT	Enlarge View Click Here
A29 Major Brand A-Section V-Belt Also Known As: PHGA29 A760 Belt Number: A29 Inside Length Approx: 29 inch = 737mm Outside Length Approx: 31 inch = 787mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £4.43 ex. VAT	Enlarge View Click Here
A30 Major Brand A-Section V-Belt Also Known As: PHGA30 A790 Belt Number: A30 Inside Length Approx: 30 inch = 762mm Outside Length Approx: 32 inch = 813mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £4.50 ex. VAT	Enlarge View Click Here
A31 Major Brand A-Section V-Belt Also Known As: PHGA31 A820 Belt Number: A31 Inside Length Approx: 31 inch = 787mm Outside Length Approx: 33 inch = 838mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £4.54 ex. VAT	Enlarge View Click Here
A31.5 Major Brand A-Section V-Belt Also Known As: PHGA31.5 Belt Number: A31.5 Inside Length Approx: 31.5 inch = 800mm Outside Length Approx: 33.5 inch = 851mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £4.59 ex. VAT	Enlarge View Click Here
A32 Major Brand A-Section V-Belt Also Known As: PHGA32 Belt Number: A32 Inside Length Approx: 32 inch = 813mm Outside Length Approx: 34 inch = 864mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £4.66 ex. VAT	Enlarge View Click Here
A33 Major Brand A-Section V-Belt Also Known As: PHGA33 A870 Belt Number: A33 Inside Length Approx: 33 inch = 838mm Outside Length Approx: 35 inch = 889mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £4.70 ex. VAT	Enlarge View Click Here
A34 Major Brand A-Section V-Belt Also Known As: PHGA34 A890 Belt Number: A34 Inside Length Approx: 34 inch = 864mm Outside Length Approx: 36 inch = 914mm Belt Width Approx: 13mm Belt Depth Approx: 8mm	From £4.77 ex. VAT	Enlarge View Click Here

Displaying 1 to 25 (of 162 products)

Result Pages: 1 2 3 4 5 6 7 [Next >>]

V or Vee Belt drives consist of a connection between two or more shafts by one or multiple rubber drive belts, these belts are pulled tight or "tensioned" such as to create friction between the sides of the pulleys and the belts, each of the shafts will have a pulley attached and the belt is tensioned between them. As the drive pulley turns the power is transferred to the driven pulley by the belt.

The efficiency longevity and success of the drive is dependent on several factors including the correct design and maintenance of the drive, some of these are:

The loose side of the drive and tight side tensions being correct.
Cooling of the drive - guards need to have ventilation.
The coefficient of friction between the belt material and the pulleys.
Total angle of contact around the pulleys. - Can be altered by use of a jockey or idler pulley.
Centrifugal force - as the belt speed increases it is lifted off the pulleys thus loosing traction.
The correct angle of the V-Pulley being maintained, generally 17 to 19 degrees allowing the belt to be wedged in place.
Prevention of foreign matter entering the drive. This could be dust, oil grease etc.
Correct alignment and concentricity of the pulleys.

Advantage of V Belt drives:

Installation tolerances are not so exact.
Absorb vibration and shocks.
Lubrication free.
If overloaded or jammed the belts will slip.
Higher torsional shaft loads can be handled by multiple belts.
Can transmit very high loads and speeds.
Can be use to step speed up or down by pulley diameter ratio changes.

Disadvantages of V-Belt drives:

Higher bearing loads on tensioned end of a drive shaft.
Bearing life may be reduced.
Rubber has a limited life and can be reduced further if contaminated.
Smaller diameter pulleys cause stresses to the rubber and fibre make up of belts .
Dust, Oil and other foreign matter will wear pulleys and reduce belt life, cause slipping and reduce the amount of energy transferred.
Failure can be sudden, snapped belts will stop the driven side of a drive even though the drive may still be turning.
Poor ventilation will cause overheating and denaturing of the rubber, subsequent slippage and polishing of the belt may occur.
Bulky ventilated guarding will have to be installed.
