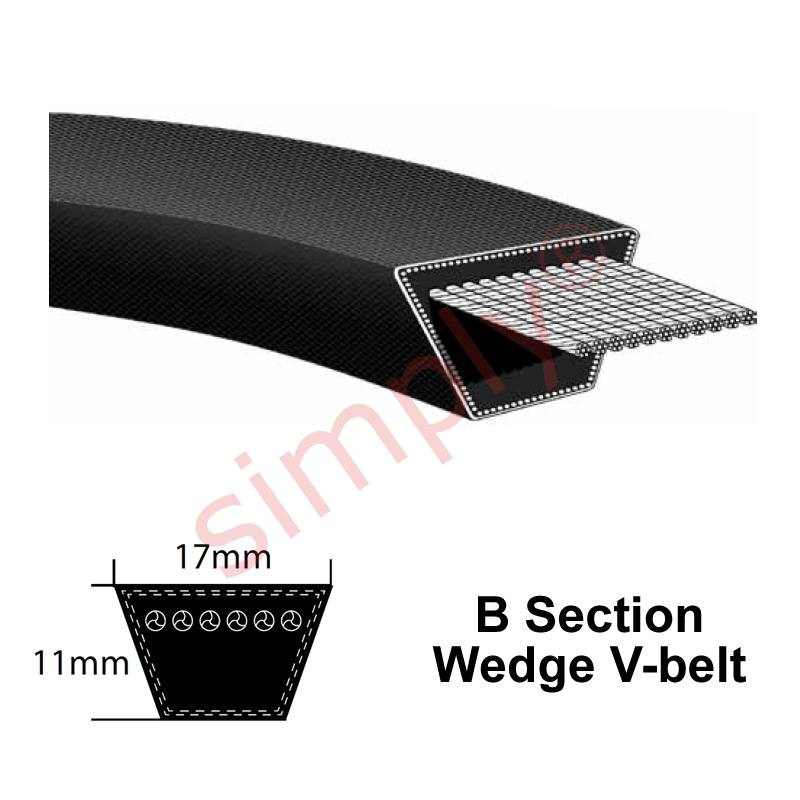

Quality B Section V Belts - 17x11mm

Please select your sizes and options ...	[x] Reset

Displaying 1 to 25 (of 198 products)


B23 Major Brand B-Section V-Belt Belt Number: B23 Inside Length Approx: 23 inch = 584mm Outside Length Approx: 25.75 inch = 654mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £4.80 ex. VAT	Enlarge View Click Here
B24 Major Brand B-Section V-Belt Also Known As: B655 Belt Number: B24 Inside Length Approx: 24 inch = 610mm Outside Length Approx: 26.75 inch = 679mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £4.89 ex. VAT	Enlarge View Click Here
B25 Major Brand B-Section V-Belt Also Known As: B670 Belt Number: B25 Inside Length Approx: 25 inch = 635mm Outside Length Approx: 27.75 inch = 705mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £4.96 ex. VAT	Enlarge View Click Here
B26 Major Brand B-Section V-Belt Belt Number: B26 Inside Length Approx: 26 inch = 660mm Outside Length Approx: 28.75 inch = 730mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £5.03 ex. VAT	Enlarge View Click Here
B26.5 Major Brand B-Section V-Belt Also Known As: B710 Belt Number: B26.5 Inside Length Approx: 26.5 inch = 673mm Outside Length Approx: 29.25 inch = 743mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £5.09 ex. VAT	Enlarge View Click Here
B27 Major Brand B-Section V-Belt Also Known As: B725 Belt Number: B27 Inside Length Approx: 27 inch = 686mm Outside Length Approx: 29.75 inch = 756mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £5.12 ex. VAT	Enlarge View Click Here
B28 Major Brand B-Section V-Belt Also Known As: B750 Belt Number: B28 Inside Length Approx: 28 inch = 711mm Outside Length Approx: 30.75 inch = 781mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £5.26 ex. VAT	Enlarge View Click Here
B29 Major Brand B-Section V-Belt Belt Number: B29 Inside Length Approx: 29 inch = 737mm Outside Length Approx: 31.75 inch = 806mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £5.35 ex. VAT	Enlarge View Click Here
B30 Major Brand B-Section V-Belt Also Known As: B800 Belt Number: B30 Inside Length Approx: 30 inch = 762mm Outside Length Approx: 32.75 inch = 832mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £5.44 ex. VAT	Enlarge View Click Here
B31 Major Brand B-Section V-Belt Also Known As: B830 Belt Number: B31 Inside Length Approx: 31 inch = 787mm Outside Length Approx: 33.75 inch = 857mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £5.51 ex. VAT	Enlarge View Click Here
B31.5 Major Brand B-Section V-Belt Belt Number: B31.5 Inside Length Approx: 31.5 inch = 800mm Outside Length Approx: 34.25 inch = 870mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £5.58 ex. VAT	Enlarge View Click Here
B32 Major Brand B-Section V-Belt Also Known As: B850 Belt Number: B32 Inside Length Approx: 32 inch = 813mm Outside Length Approx: 34.75 inch = 883mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £5.62 ex. VAT	Enlarge View Click Here
B32.5 Major Brand B-Section V-Belt Belt Number: B32.5 Inside Length Approx: 32.5 inch = 826mm Outside Length Approx: 35.25 inch = 895mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £5.65 ex. VAT	Enlarge View Click Here
B33 Major Brand B-Section V-Belt Also Known As: B880 Belt Number: B33 Inside Length Approx: 33 inch = 838mm Outside Length Approx: 35.75 inch = 908mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £5.74 ex. VAT	Enlarge View Click Here
B33.75 Major Brand B-Section V-Belt Belt Number: B33.75 Inside Length Approx: 33.75 inch = 857mm Outside Length Approx: 36.5 inch = 927mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £5.76 ex. VAT	Enlarge View Click Here
B34 Major Brand B-Section V-Belt Also Known As: B910 Belt Number: B34 Inside Length Approx: 34 inch = 864mm Outside Length Approx: 36.75 inch = 933mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £5.81 ex. VAT	Enlarge View Click Here
B35 Major Brand B-Section V-Belt Also Known As: B930 Belt Number: B35 Inside Length Approx: 35 inch = 889mm Outside Length Approx: 37.75 inch = 959mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £5.88 ex. VAT	Enlarge View Click Here
B35.5 Major Brand B-Section V-Belt Belt Number: B35.5 Inside Length Approx: 35.5 inch = 902mm Outside Length Approx: 38.25 inch = 972mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £5.97 ex. VAT	Enlarge View Click Here
B36 Major Brand B-Section V-Belt Also Known As: B960 Belt Number: B36 Inside Length Approx: 36 inch = 914mm Outside Length Approx: 38.75 inch = 984mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £5.99 ex. VAT	Enlarge View Click Here
B37 Major Brand B-Section V-Belt Also Known As: B980 Belt Number: B37 Inside Length Approx: 37 inch = 940mm Outside Length Approx: 39.75 inch = 1010mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £6.11 ex. VAT	Enlarge View Click Here
B38 Major Brand B-Section V-Belt Also Known As: B1000 Belt Number: B38 Inside Length Approx: 38 inch = 965mm Outside Length Approx: 40.75 inch = 1035mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £6.22 ex. VAT	Enlarge View Click Here
B39 Major Brand B-Section V-Belt Belt Number: B39 Inside Length Approx: 39 inch = 991mm Outside Length Approx: 41.75 inch = 1060mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £6.29 ex. VAT	Enlarge View Click Here
B39.5 Major Brand B-Section V-Belt Belt Number: B39.5 Inside Length Approx: 39.5 inch = 1003mm Outside Length Approx: 42.25 inch = 1073mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £6.34 ex. VAT	Enlarge View Click Here
B40 Major Brand B-Section V-Belt Also Known As: B1060 Belt Number: B40 Inside Length Approx: 40 inch = 1016mm Outside Length Approx: 42.75 inch = 1086mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £6.36 ex. VAT	Enlarge View Click Here
B41 Major Brand B-Section V-Belt Also Known As: B1080 Belt Number: B41 Inside Length Approx: 41 inch = 1041mm Outside Length Approx: 43.75 inch = 1111mm Belt Width Approx: 17mm Belt Depth Approx: 11mm	From £6.43 ex. VAT	Enlarge View Click Here

Displaying 1 to 25 (of 198 products)

Result Pages: 1 2 3 4 5 6 7 8 [Next >>]

V or Vee Belt drives consist of a connection between two or more shafts by one or multiple rubber drive belts, these belts are pulled tight or "tensioned" such as to create friction between the sides of the pulleys and the belts, each of the shafts will have a pulley attached and the belt is tensioned between them. As the drive pulley turns the power is transferred to the driven pulley by the belt.

The efficiency longevity and success of the drive is dependent on several factors including the correct design and maintenance of the drive, some of these are:

The loose side of the drive and tight side tensions being correct.
Cooling of the drive - guards need to have ventilation.
The coefficient of friction between the belt material and the pulleys.
Total angle of contact around the pulleys. - Can be altered by use of a jockey or idler pulley.
Centrifugal force - as the belt speed increases it is lifted off the pulleys thus loosing traction.
The correct angle of the V-Pulley being maintained, generally 17 to 19 degrees allowing the belt to be wedged in place.
Prevention of foreign matter entering the drive. This could be dust, oil grease etc.
Correct alignment and concentricity of the pulleys.

Advantage of V Belt drives:

Installation tolerances are not so exact.
Absorb vibration and shocks.
Lubrication free.
If overloaded or jammed the belts will slip.
Higher torsional shaft loads can be handled by multiple belts.
Can transmit very high loads and speeds.
Can be use to step speed up or down by pulley diameter ratio changes.

Disadvantages of V-Belt drives:

Higher bearing loads on tensioned end of a drive shaft.
Bearing life may be reduced.
Rubber has a limited life and can be reduced further if contaminated.
Smaller diameter pulleys cause stresses to the rubber and fibre make up of belts .
Dust, Oil and other foreign matter will wear pulleys and reduce belt life, cause slipping and reduce the amount of energy transferred.
Failure can be sudden, snapped belts will stop the driven side of a drive even though the drive may still be turning.
Poor ventilation will cause overheating and denaturing of the rubber, subsequent slippage and polishing of the belt may occur.
Bulky ventilated guarding will have to be installed.
