Deep Groove Ball Bearings 1600 Series (inch)
Major Branded 16162RS Rubber Sealed Deep Groove Ball Bearing 0.5x1.125x0.375 inch - Allow 2-3 Days
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race [show more]...
Inside Diameter: 12.7mm = 0.5 (1/2) inch
Outside Diameter: 28.58mm = 1.125 (1-1/8) inch
Width: 9.53mm = 0.375 (3/8) inch
Seals / Shields: Rubber Sealed
Clearance: * Standard
Major Branded 1604ZZ Metal Shielded Deep Groove Ball Bearing 0.375x0.875x0.28125 inch
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the [show more]...
Inside Diameter: 9.53mm = 0.375 (3/8) inch
Outside Diameter: 22.23mm = 0.875 (7/8) inch
Width: 7.14mm = 0.281 (9/32) inch
Seals / Shields: Metal Shielded
Clearance: * Standard
Major Branded 16032RS Rubber Sealed Deep Groove Ball Bearing 0.3125x0.875x0.34375 inch
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race [show more]...
Inside Diameter: 7.93mm = 0.312 (5/16) inch
Outside Diameter: 22.23mm = 0.875 (7/8) inch
Width: 8.73mm = 0.344 (11/32) inch
Seals / Shields: Rubber Sealed
Clearance: * Standard
Major Branded 16042RS Rubber Sealed Deep Groove Ball Bearing 0.375x0.875x0.34375 inch
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race [show more]...
Inside Diameter: 9.53mm = 0.375 (3/8) inch
Outside Diameter: 22.23mm = 0.875 (7/8) inch
Width: 8.73mm = 0.344 (11/32) inch
Seals / Shields: Rubber Sealed
Clearance: * Standard
Major Branded 1620ZZ Metal Shielded Deep Groove Ball Bearing 0.4375x1.375x0.4375 inch
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the [show more]...
Inside Diameter: 11.11mm = 0.437 (7/16) inch
Outside Diameter: 34.93mm = 1.375 (1-3/8) inch
Width: 11.11mm = 0.437 (7/16) inch
Seals / Shields: Metal Shielded
Clearance: * Standard

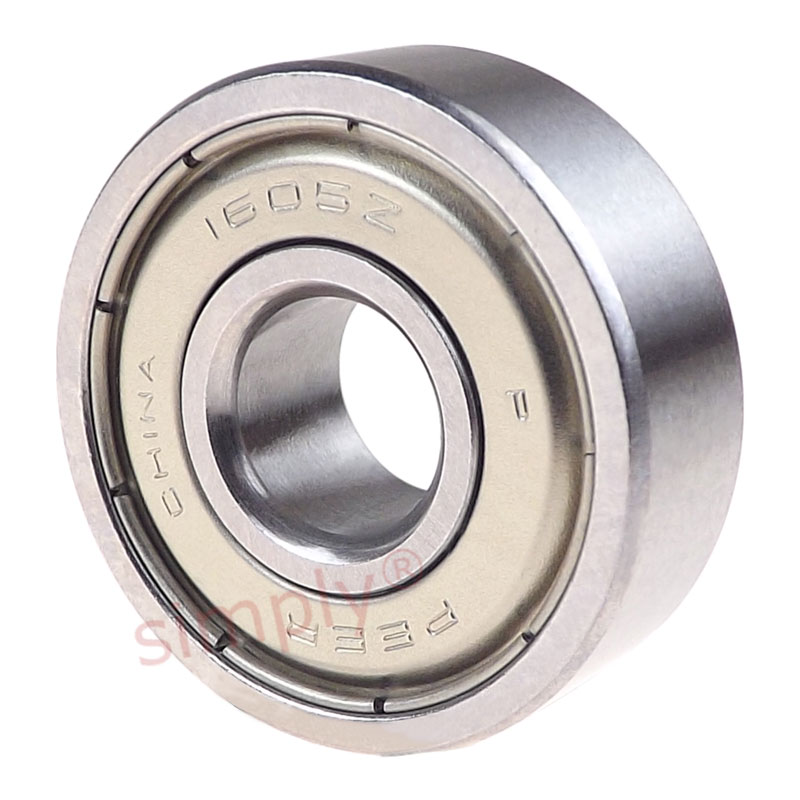

Major Branded 1605ZZ Metal Shielded Deep Groove Ball Bearing 0.3125x0.9062x0.3125 inch
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the [show more]...
Inside Diameter: 7.93mm = 0.312 (5/16) inch
Outside Diameter: 23.02mm = 0.906 (29/32) inch
Width: 7.93mm = 0.312 (5/16) inch
Seals / Shields: Metal Shielded
Clearance: * Standard
Major Branded 1606ZZ Metal Shielded Deep Groove Ball Bearing 0.375x0.9062x0.3125 inch
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the [show more]...
Inside Diameter: 9.53mm = 0.375 (3/8) inch
Outside Diameter: 23.02mm = 0.906 (29/32) inch
Width: 7.93mm = 0.312 (5/16) inch
Seals / Shields: Metal Shielded
Clearance: * Standard
Major Branded 1630ZZNR Metal Shielded with a Snap Ring Deep Groove Ball Bearing 0.75x1.625x0.5 inch - Allow 2-3 Days
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, these bearing types are manufactured with metal shields inserted into the [show more]...
Inside Diameter: 19.05mm = 0.75 (3/4) inch
Outside Diameter: 41.28mm = 1.625 (1-5/8) inch
Width: 12.7mm = 0.5 (1/2) inch
Seals / Shields: Metal Shielded
Clearance: * Standard
Snap Ring: Snap Ring
Major Branded 16352RSNR Rubber Sealed with a Snap Ring Deep Groove Ball Bearing 0.75x1.75x0.5 inch - Allow 2-3 Days
Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, these bearing types are manufactured with rubber seals inserted into the [show more]...
Inside Diameter: 19.05mm = 0.75 (3/4) inch
Outside Diameter: 44.45mm = 1.75 (1-3/4) inch
Width: 12.7mm = 0.5 (1/2) inch
Seals / Shields: Rubber Sealed
Clearance: * Standard
Snap Ring: Snap Ring
Major Branded 1616 Open Type Deep Groove Ball Bearing 0.5x1.125x0.375 inch
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes [show more]...
Inside Diameter: 12.7mm = 0.5 (1/2) inch
Outside Diameter: 28.58mm = 1.125 (1-1/8) inch
Width: 9.53mm = 0.375 (3/8) inch
Seals / Shields: None
Clearance: * Standard
Major Branded 1621ZZ Metal Shielded Deep Groove Ball Bearing 0.5x1.375x0.4375 inch
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the [show more]...
Inside Diameter: 12.7mm = 0.5 (1/2) inch
Outside Diameter: 34.93mm = 1.375 (1-3/8) inch
Width: 11.11mm = 0.437 (7/16) inch
Seals / Shields: Metal Shielded
Clearance: * Standard

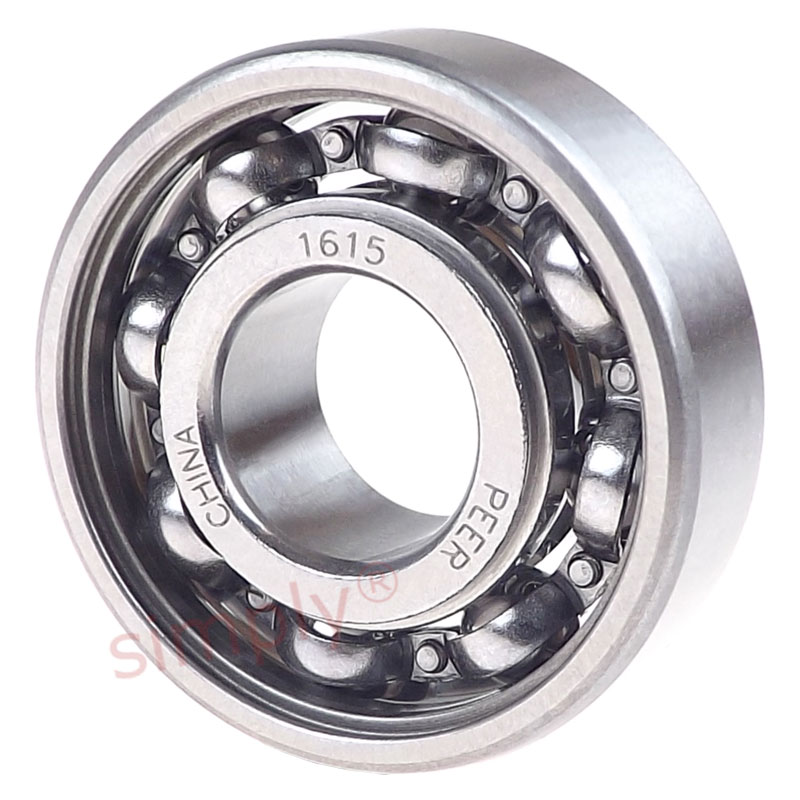

Major Branded 1615 Open Type Deep Groove Ball Bearing 0.4375x1.125x0.375 inch
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes [show more]...
Inside Diameter: 11.11mm = 0.437 (7/16) inch
Outside Diameter: 28.58mm = 1.125 (1-1/8) inch
Width: 9.53mm = 0.375 (3/8) inch
Seals / Shields: None
Clearance: * Standard
Major Branded 1623 Open Type Deep Groove Ball Bearing 0.625x1.375x0.4375 inch
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes [show more]...
Inside Diameter: 15.88mm = 0.625 (5/8) inch
Outside Diameter: 34.93mm = 1.375 (1-3/8) inch
Width: 11.11mm = 0.437 (7/16) inch
Seals / Shields: None
Clearance: * Standard
Major Branded 1622ZZ Metal Shielded Deep Groove Ball Bearing 0.5625x1.375x0.4375 inch
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the [show more]...
Inside Diameter: 14.29mm = 0.563 (9/16) inch
Outside Diameter: 34.93mm = 1.375 (1-3/8) inch
Width: 11.11mm = 0.437 (7/16) inch
Seals / Shields: Metal Shielded
Clearance: * Standard
Major Branded 1630ZZ Metal Shielded Deep Groove Ball Bearing 0.75x1.625x0.5 inch
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the [show more]...
Inside Diameter: 19.05mm = 0.75 (3/4) inch
Outside Diameter: 41.28mm = 1.625 (1-5/8) inch
Width: 12.7mm = 0.5 (1/2) inch
Seals / Shields: Metal Shielded
Clearance: * Standard
Major Branded 16302RS Rubber Sealed Deep Groove Ball Bearing 0.75x1.625x0.5 inch
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race [show more]...
Inside Diameter: 19.05mm = 0.75 (3/4) inch
Outside Diameter: 41.28mm = 1.625 (1-5/8) inch
Width: 12.7mm = 0.5 (1/2) inch
Seals / Shields: Rubber Sealed
Clearance: * Standard
Major Branded 16062RSNR Rubber Sealed with a Snap Ring Deep Groove Ball Bearing 0.375x0.9062x0.3125 inch
Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, these bearing types are manufactured with rubber seals inserted into the [show more]...
Inside Diameter: 9.53mm = 0.375 (3/8) inch
Outside Diameter: 23.02mm = 0.906 (29/32) inch
Width: 7.93mm = 0.312 (5/16) inch
Seals / Shields: Rubber Sealed
Clearance: * Standard
Snap Ring: Snap Ring

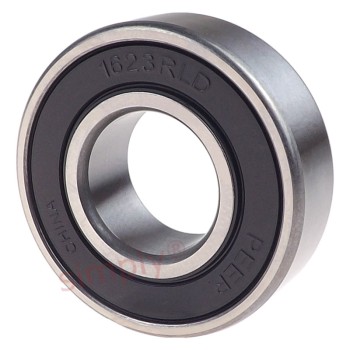

Major Branded 16232RS Rubber Sealed Deep Groove Ball Bearing 0.625x1.375x0.4375 inch
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race [show more]...
Inside Diameter: 15.88mm = 0.625 (5/8) inch
Outside Diameter: 34.93mm = 1.375 (1-3/8) inch
Width: 11.11mm = 0.437 (7/16) inch
Seals / Shields: Rubber Sealed
Clearance: * Standard
Major Branded 1623ZZ Metal Shielded Deep Groove Ball Bearing 0.625x1.375x0.4375 inch
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the [show more]...
Inside Diameter: 15.88mm = 0.625 (5/8) inch
Outside Diameter: 34.93mm = 1.375 (1-3/8) inch
Width: 11.11mm = 0.437 (7/16) inch
Seals / Shields: Metal Shielded
Clearance: * Standard
Major Branded 16142RSNR Rubber Sealed with a Snap Ring Deep Groove Ball Bearing 0.375x1.125x0.375 inch
Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, these bearing types are manufactured with rubber seals inserted into the [show more]...
Inside Diameter: 9.53mm = 0.375 (3/8) inch
Outside Diameter: 28.58mm = 1.125 (1-1/8) inch
Width: 9.53mm = 0.375 (3/8) inch
Seals / Shields: Rubber Sealed
Clearance: * Standard
Snap Ring: Snap Ring
Major Branded 1635ZZ Metal Shielded Deep Groove Ball Bearing 0.75x1.75x0.5 inch
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the [show more]...
Inside Diameter: 19.05mm = 0.75 (3/4) inch
Outside Diameter: 44.45mm = 1.75 (1-3/4) inch
Width: 12.7mm = 0.5 (1/2) inch
Seals / Shields: Metal Shielded
Clearance: * Standard

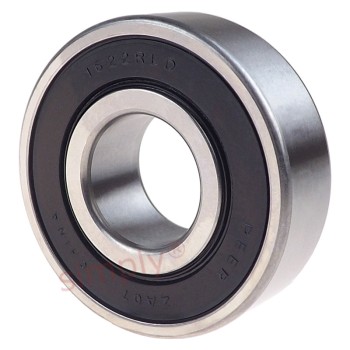

Major Branded 16222RS Rubber Sealed Deep Groove Ball Bearing 0.5625x1.375x0.4375 inch - Allow 2-3 Days
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race [show more]...
Inside Diameter: 14.29mm = 0.563 (9/16) inch
Outside Diameter: 34.93mm = 1.375 (1-3/8) inch
Width: 11.11mm = 0.437 (7/16) inch
Seals / Shields: Rubber Sealed
Clearance: * Standard

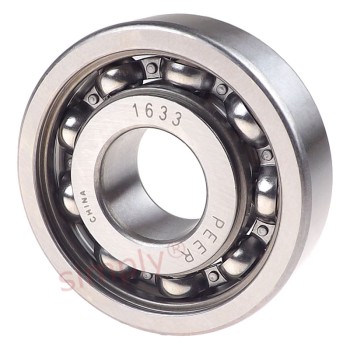

Major Branded 1633 Open Type Deep Groove Ball Bearing 0.625x1.75x0.5 inch
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes [show more]...
Inside Diameter: 15.88mm = 0.625 (5/8) inch
Outside Diameter: 44.45mm = 1.75 (1-3/4) inch
Width: 12.7mm = 0.5 (1/2) inch
Seals / Shields: None
Clearance: * Standard
Major Branded 16332RS Rubber Sealed Deep Groove Ball Bearing 0.625x1.75x0.5 inch
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race [show more]...
Inside Diameter: 15.88mm = 0.625 (5/8) inch
Outside Diameter: 44.45mm = 1.75 (1-3/4) inch
Width: 12.7mm = 0.5 (1/2) inch
Seals / Shields: Rubber Sealed
Clearance: * Standard
Major Branded 1633ZZ Metal Shielded Deep Groove Ball Bearing 0.625x1.75x0.5 inch
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the [show more]...
Inside Diameter: 15.88mm = 0.625 (5/8) inch
Outside Diameter: 44.45mm = 1.75 (1-3/4) inch
Width: 12.7mm = 0.5 (1/2) inch
Seals / Shields: Metal Shielded
Clearance: * Standard
Deep Groove Ball Bearings 1600 Series (inch)
Used in many types of machinery and gearboxes, deep groove ball bearings are available in both shielded and open types so they're suitable for many different situations depending on whether you need easy access for lubrication, or want to keep out contaminants like dirt and moisture.
At Simply Bearings we stock the well-known brand of Peer deep groove ball bearings and these are available in a wide range of different sizes. The deep groove ball bearings 1600 series can be had with open sides to allow for lubrication or for use in closed environments such as gearboxes.
We also supply the deep groove ball bearings 1600 series fitted with metal shielding or with rubber seals. These are used where the bearing needs to be kept free of dirt and contaminants. Metal shielding fits closely, guarding against damage and helping keep out moisture and dust whilst keeping in lubricating grease. Rubber seals offer greater protection against contaminants as well as having the advantage of being lubricated for life, so they're suitable for harsh conditions and marine use.
Ordering your Peer deep groove ball bearings from our website is straightforward - simply select the type and size you want from the drop-down lists at the top of the page. You can select inside and outside diameters, widths and clearances, so it's easy to find exactly the bearing you need. If you need any extra help ordering, you can phone our friendly customer services team and they'll be happy to help you out. Of course, at Simply Bearings all our deep groove ball bearings are covered by our 90-day, no quibble money back guarantee, allowing you to place your order with 100 percent confidence.
We're happy to supply both large and small quantities, and if you place your order before 4pm we'll send it out the same day. Second class post delivery is free of charge. If you need your bearings sooner, you can select first class or courier services at the website checkout and the cost will be calculated for you. We can ship orders overseas too, again the cost of shipping will be calculated for you on the website.
