  • SKF W619002Z Stainless Steel Metal Shielded Thin Section Deep Groove Ball Bearing 10x22x6mm

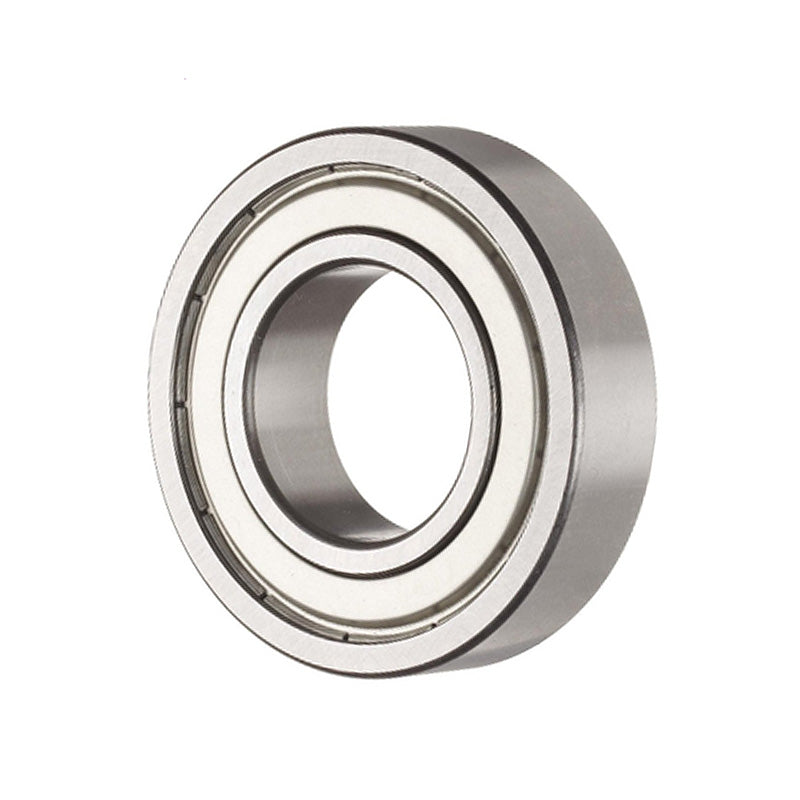

SKF W619002Z Stainless Steel Metal Shielded Thin Section Deep Groove Ball Bearing 10x22x6mm
Great rates on shipping on any order regardless of size

SKF W619002Z Stainless Steel Metal Shielded Thin Section Deep Groove Ball Bearing 10x22x6mm

Equivalent to: W61900ZZ
0.010000kg

Add to a Save List

SKF stainless steel deep groove ball bearings are specially designed to resist corrosion. They are ideally suited for application in the food industry and anywhere that requires a bearing which is both hygienic and has a high resilience to water. These single row deep groove ball bearings have the same deep raceway grooves and close conformity between raceways and balls as standard deep groove ball bearings. They can carry axial loads acting in both directions in addition to radial loads, even at high speeds. SKF stainless steel deep groove ball bearings have the same running properties as conventional steel deep groove ball bearings, but have a lower load carrying capacity. The bearings are available in open and sealed designs for shaft diameters from 1 to 50 mm.
Benefits: Food safe, water and corrosion resilient, available up to 50mm bore
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.
Brand / Quality: SKF - High Quality
Inside Diameter: 10mm
Outside Diameter: 22mm
Width: 6mm
Seals / Shields: Metal Shielded
Clearance: * Standard
d
=
10mm
D
=
22mm
B
=
6mm
Dynamic load C
=
1.74 kN
Static load Co
=
0.815 kN
Fatigue load limit Pu
=
0.036 kN
Reference speed
=
75000 rpm
Limiting speed
=
36000 rpm
Weight
=
0.01 kg
d1
=
13.2mm
D1
=
19.4mm
r1r2 min
=
0.3mm
da min
=
12mm
Da max
=
20mm
ra max
=
0.3mm
Calculation factor kr
=
0.02
Calculation factor f0
=
9.3
Stainless Deep Groove Ball Bearings
