SKF W618022Z Stainless Steel Metal Shielded Thin Section Deep Groove Ball Bearin Simply Bearings Ltd

Quantity	Prices
10+	£23.58 each
19+	£22.26 each
29+	£21.99 each
39+	£21.73 each
49+	£21.46 each
74+	£21.20 each
99+	£19.87 each

SKF stainless steel deep groove ball bearings are specially designed to resist corrosion. They are ideally suited for application in the food industry and anywhere that requires a bearing which is both hygienic and has a high resilience to water. These single row deep groove ball bearings have the same deep raceway grooves and close conformity between raceways and balls as standard deep groove ball bearings. They can carry axial loads acting in both directions in addition to radial loads, even at high speeds. SKF stainless steel deep groove ball bearings have the same running properties as conventional steel deep groove ball bearings, but have a lower load carrying capacity. The bearings are available in open and sealed designs for shaft diameters from 1 to 50 mm.
Benefits: Food safe, water and corrosion resilient, available up to 50mm bore
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Roderick Kaleb, United Kingdom
Review added on 11/12/2020

The value for money of this bearing was great. Good quality and significantly cheaper than local factors. Free delivery as well.

Write a Product Review

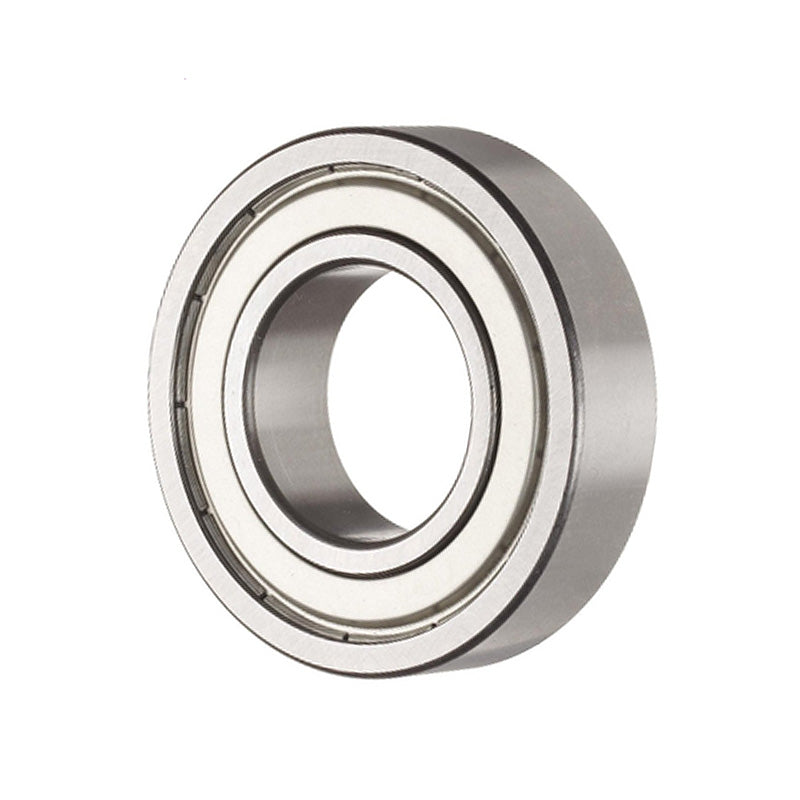

SKF W618022Z Stainless Steel Metal Shielded Thin Section Deep Groove Ball Bearing 15x24x5mm

First Name *

Last Name *

Country *

Rating *

Please give a rating

Please rate and write your honest review of this item in up to 300 characters.

d	=	15mm
D	=	24mm
B	=	5mm
Dynamic load C	=	1.3 kN
Static load Co	=	0.78 kN
Fatigue load limit Pu	=	0.034 kN
Reference speed	=	60000 rpm
Limiting speed	=	30000 rpm
Weight	=	0.0076 kg
d1	=	16.8mm
D1	=	22.2mm
r1r2 min	=	0.3mm
da min	=	16.8mm
Da max	=	22mm
ra max	=	0.3mm
Calculation factor kr	=	0.015
Calculation factor f0	=	10
