SKU: MB.80100.DLX
MB80100X Bronze Backed Steel Bush 80x85x100mm
MB80100X Bronze Backed Steel Bush 80x85x100mm
Regular price
£13.16
ex VAT£15.79inc. VAT
Regular price
Sale price
£13.16
ex VAT£15.79
inc. VAT
Equivalent to: PAP80100P11
In stock
Price Break
10+
£11.71
19+
£11.05
29+
£10.92
39+
£10.79
49+
£10.66
74+
£10.53
99+
£9.87
199+
£9.74
249+
£9.61
499+
£9.48
999+
£9.21
Couldn't load pickup availability
Description
Description
|

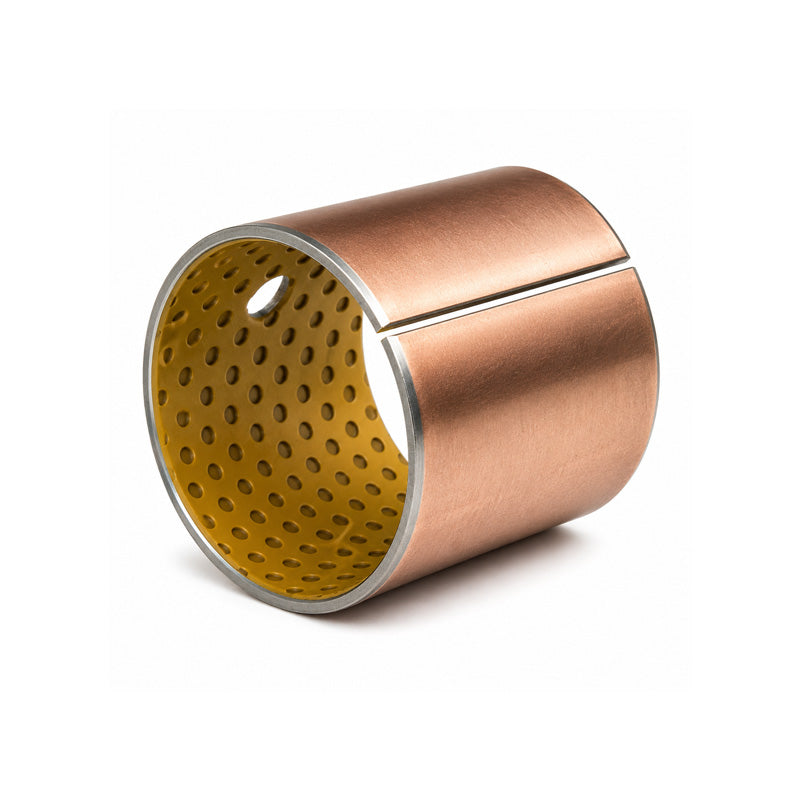

Bronze Backed Plain Steel Bush: Made from a composite material developed specifically to operate with minimal lubrication. This bush bearing consists of three bonded layers - a steel backing strip and sintered porous bronze matrix, impregnated and overlaid with a pigmented acetal copolymer bearing material. The bearing surface is normally provided with a uniform pattern of indents which serve as a reservoir for grease and is designed to provide the optimum distribution of the lubricant over the bearing surface. |
Equivalent: PAP80100P11
- Brand / Quality:
- Simply Wrapped Steel Bushes - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 85mm
- Length:
- 100mm
Technical
Technical
| d | 80mm |
|---|---|
| D | 85mm |
| b | 100mm |
| Structure | Steel support strip S.A.E 1010. Sintered bronze layer. Co-Acetal polymer |
| Maximum static load | 140 N/mm<sup>2</sup> |
| Maximum dynamic load | 70 N/mm<sup>2</sup> |
| Maximum sliding speed | 2.5m/s with grease |
| Operating temperature | -40°C to +110° C |
| Intermittent maximum temperature | 130° C |
| Thermal conductivity | 2 W/mK |
| Coefficient of friction | 0.05 to 0.12 with grease |
| Recommended housing tolerance | H7 |
| Recommended shaft tolerance | h8 |
| Recommended shaft finish | HB > 200 |
| Recommended shaft hardness | HB > 200 |
