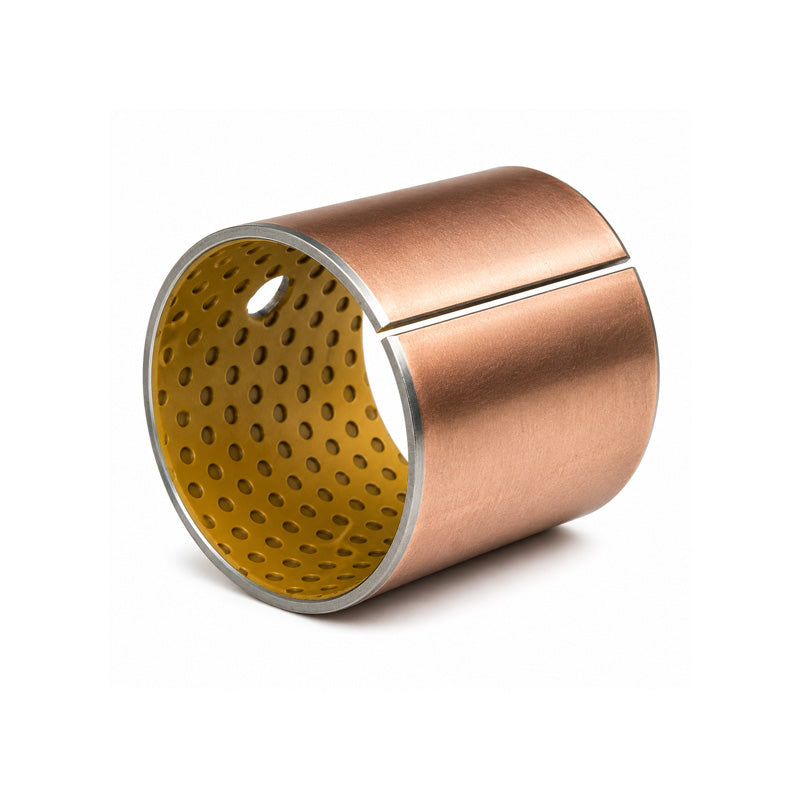

MB4020X Bronze Backed Steel Bush 40x44x20mm
Equivalent to: PAP4020P20
£3.77
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 9+ | £3.35 each |
| 19+ | £3.13 each |
| 29+ | £3.09 each |
| 39+ | £3.05 each |
| 49+ | £3.02 each |
| 69+ | £2.83 each |
| 99+ | £2.79 each |
| 199+ | £2.75 each |
| 249+ | £2.71 each |
| 499+ | £2.64 each |
| 999+ | £2.35 each |
In Stock
| d | = | 40mm |
| D | = | 44mm |
| b | = | 20mm |
| Structure | = | Steel support strip S.A.E 1010. Sintered bronze layer. Co-Acetal polymer |
| Maximum static load | = | 140 N/mm2 |
| Maximum dynamic load | = | 70 N/mm2 |
| Maximum sliding speed | = | 2.5m/s with grease |
| Operating temperature | = | -40°C to +110° C |
| Intermittent maximum temperature | = | 130° C |
| Thermal conductivity | = | 2 W/mK |
| Coefficient of friction | = | 0.05 to 0.12 with grease |
| Recommended housing tolerance | = | H7 |
| Recommended shaft tolerance | = | h8 |
| Recommended shaft finish | = | HB > 200 |
| Recommended shaft hardness | = | HB > 200 |
