SKU: 18790/18720/Q-SKF

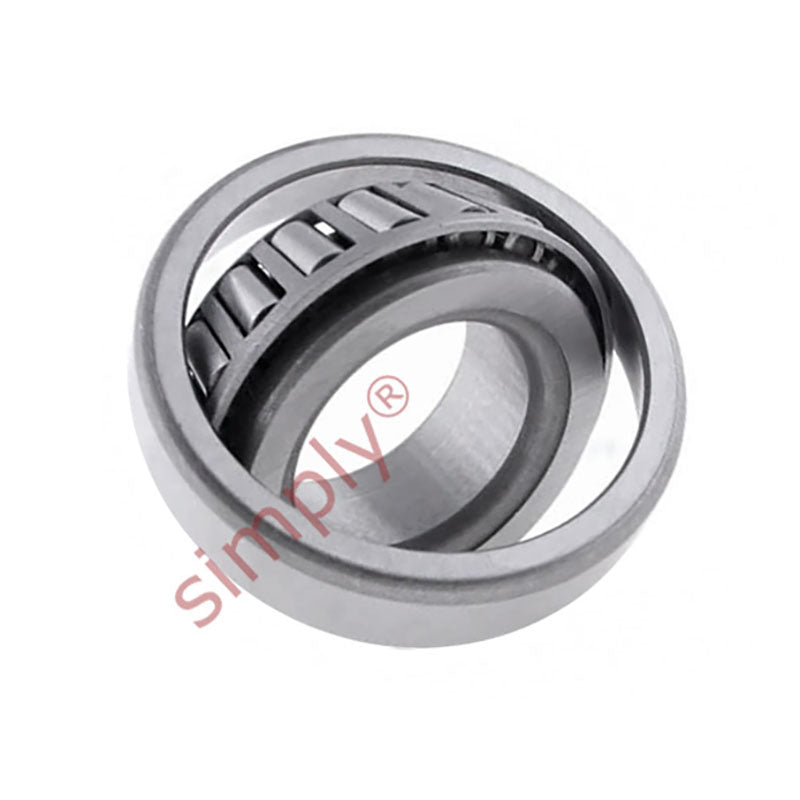

SKF 18790/18720/Q Imperial Taper Roller Bearing 2x3.3465x0.6875 inches
SKF 18790/18720/Q Imperial Taper Roller Bearing 2x3.3465x0.6875 inches
Regular price
£111.43
ex VAT£133.72inc. VAT
Regular price
Sale price
£111.43
ex VAT£133.72
inc. VAT
In stock
Price Break
10+
£99.18
19+
£93.60
29+
£92.49
39+
£91.38
49+
£90.26
74+
£89.15
99+
£83.58
199+
£82.46
249+
£81.35
499+
£80.23
999+
£78.00
Share this product
Description
Description
|
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 85mm = 3.347 inch
- Width:
- 17.46mm = 0.687 (11/16) inch
- Seals / Shields:
- None
Technical
Technical
| d | 50.8mm |
|---|---|
| D | 85mm |
| T | 17.462mm |
| Dynamic load | 50.1 kN |
| Static load | 65.5 kN |
| Fatigue load limit Pu | 7.2 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 8500 rpm |
| Weight | 0.37 kg |
| d1 | 66mm |
| B | 17.462mm |
| C | 13.495mm |
| r1r2 min | 3.5mm |
| r3r4 min | 1.5mm |
| a | 16mm |
| da max | 59mm |
| db min | 62mm |
| Da min | 75mm |
| Da max | 77.5mm |
| Db min | 79mm |
| Ca min | 3mm |
| Cb min | 3.5mm |
| ra max | 3mm |
| rb max | 1.5mm |
| Calculation factor e | 0.4 |
| Calculation factor Y | 1.5 |
| Calculation factor Y0 | 0.8 |
