Average Rating (2 Reviews)

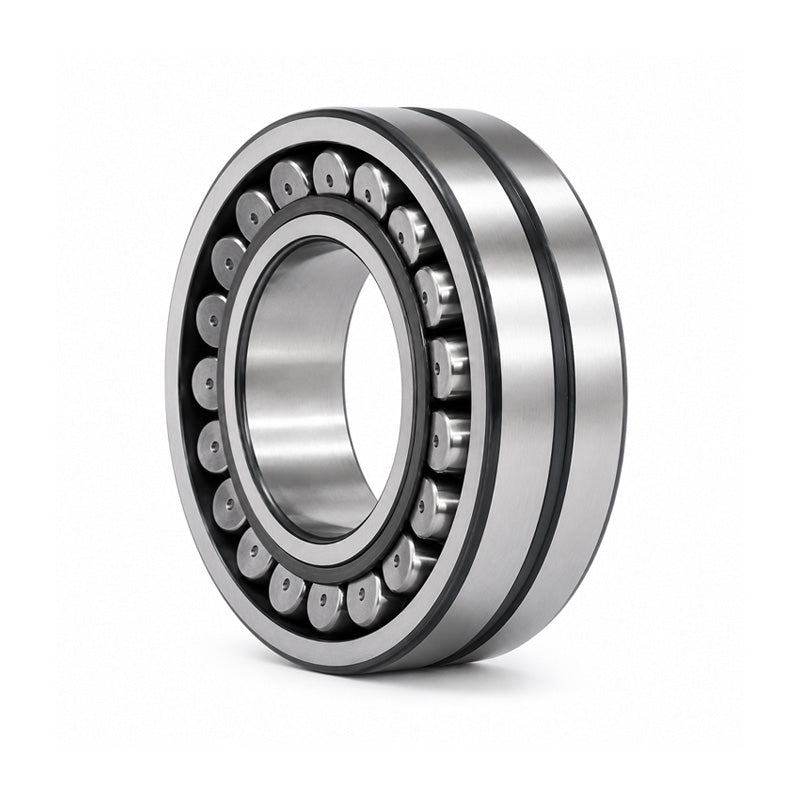

SKF 22207EK Spherical Roller Bearing with Taper Bore 35x72x23mm
Equivalent to: 22207K
£66.46
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £59.15 each |
| 4+ | £55.83 each |
| 9+ | £55.16 each |
| 19+ | £54.50 each |
| 29+ | £53.83 each |
| 39+ | £53.17 each |
| 49+ | £49.84 each |
| 59+ | £49.18 each |
| 249+ | £48.52 each |
| 499+ | £47.85 each |
| 999+ | £46.52 each |
In Stock
| Dimensions | ||
| d | = | 35mm |
| D | = | 72mm |
| B | = | 23mm |
| D1 | = | 61.8mm |
| d2 | = | 44.5mm |
| r1r2 min | = | 1.1mm |
| b | = | 3.7mm |
| K | = | 2mm |
| da min | = | 42mm |
| Da max | = | 65mm |
| ra max | = | 1mm |
| Speeds, Loads and Weights | ||
| Dynamic load C | = | 86.5 kN |
| Static load Co | = | 85 kN |
| Fatigue load limit Pu | = | 9.3 kN |
| Reference speed | = | 9000 rpm |
| Limiting speed | = | 12000 rpm |
| Weight | = | 0.45 kg |
| Factors | ||
| Calculation factor e | = | 0.31 |
| Calculation factor Y1 | = | 2.2 |
| Calculation factor Y2 | = | 3.3 |
| Calculation factor Y0 | = | 2.2 |
| Matching Adaptor Sleeves | ||
| Sleeve No. | = | H307 |
| Sleeve No. | = | HS307 |
| Sleeve No. | = | HA307 |
