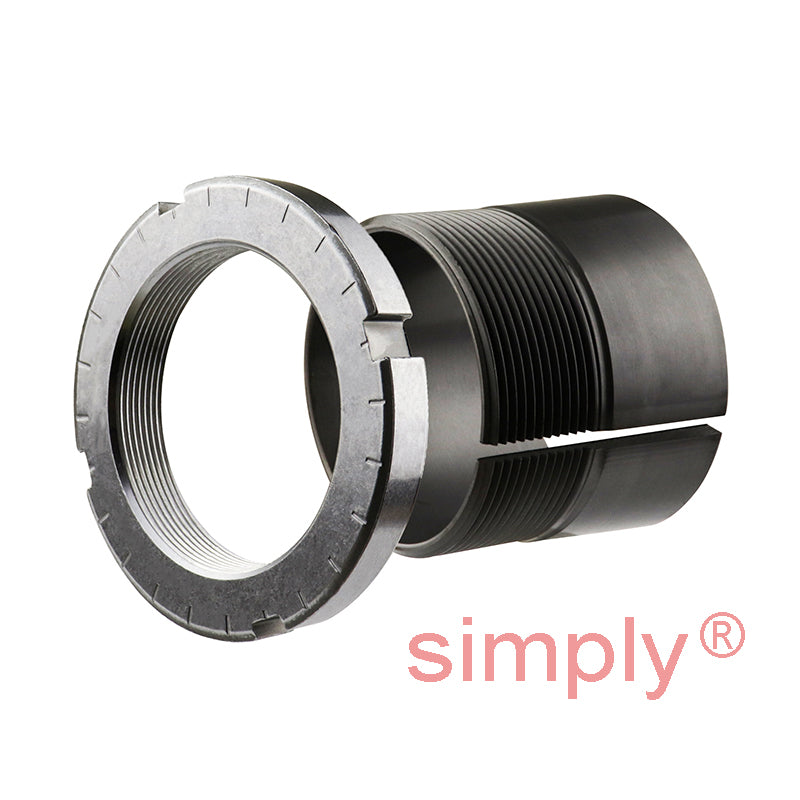

SKF H308E Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft

Page Feedback?

SKU: H308E-SKF

£37.43 ex VAT

Price Breaks

Quantity	Prices
2+	£33.32 each
5+	£31.44 each
10+	£31.07 each
20+	£30.70 each
49+	£30.32 each
74+	£29.95 each
99+	£28.08 each
199+	£27.70 each
249+	£27.33 each
499+	£26.95 each
999+	£26.20 each

2+ £33.32 each
5+ £31.44 each
10+ £31.07 eachClick Here…

In Stock

Add to a Save List

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality: SKF - High Quality
Inside Diameter: 35mm
Outside Diameter: 58mm
Width: 36mm
Need Oil Seals?

Click Here

Need Viton Seals?

Click Here

C2208KTN9 Carb Toroidal Bearing

Click Here

Dimensions
d1	=	35mm
d	=	40mm
d3	=	58mm
B1	=	36mm
B2	=	13mm
G	=	Thread 40x1.5mm
Weight	=	0.19 kg
Assembly Parts
Sleeve	=	H308E
Nut	=	KMFE8
Matching Carb Toroidal Bearings
Bearing No.	=	C2208KTN9

Bearing Number	=	H308E
H	=	Sleeve for shafts in metric dimensions.
308	=	For 35mm Shaft
E	=	The standard lock nut and washer is replaced by a KMFE, washerless nut or the standard lock nut HM30 is replaced by an HME nut with a recessed outside diameter.
