SKU: H309C-SKF

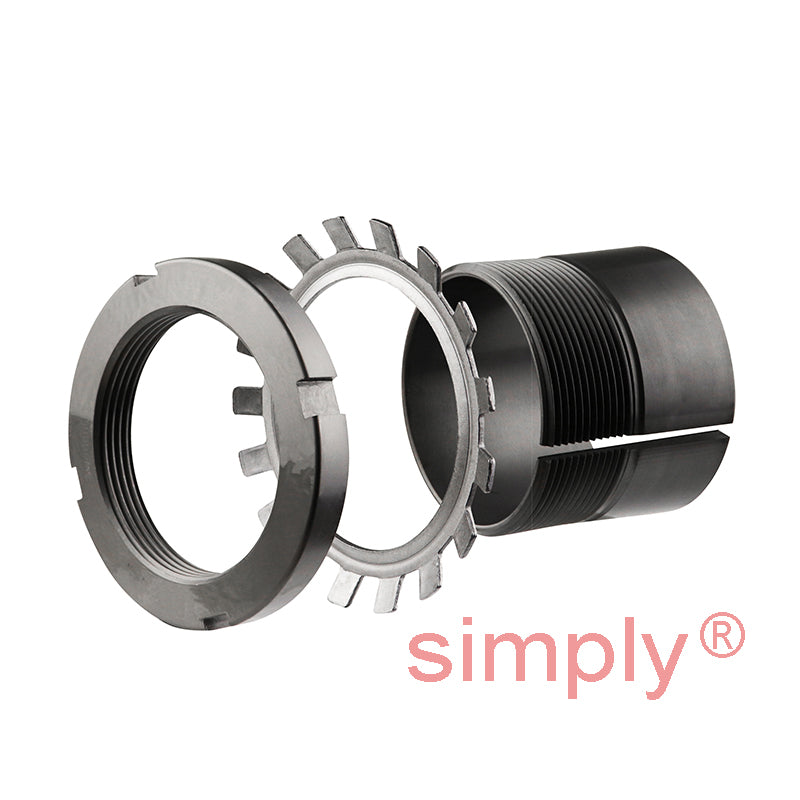

SKF H309C Adaptor Sleeve with Lock Nut and Locking Device for 40mm Shaft

Name: SKF H309C Adaptor Sleeve with Lock Nut and Locking Device for 40mm Shaft
Brand: SKF
SKU: H309C-SKF
Price: 31.35 GBP
Availability: InStock

£31.35 ex VAT£37.62inc. VAT

£31.35 ex VAT£37.62 inc. VAT

Sale Sold out

In stock

Price Break

2+ £27.90

5+ £26.33

10+ £26.02

20+ £25.71

49+ £25.39

74+ £25.08

99+ £23.51

199+ £23.20

249+ £22.88

499+ £22.57

999+ £21.94

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 40mm
Outside Diameter:: 65mm
Width:: 39mm

Technical

---	Dimensions
d1	40mm
d	45mm
d3	65mm
B1	39mm
B2	12mm
G	Thread 45x1.5mm
Weight	0.23 kg
---	Assembly Parts
Sleeve	H309C
Nut	KM9
Washer	MB9C
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2209K-2RS+taper>2209K-2RS</a>
