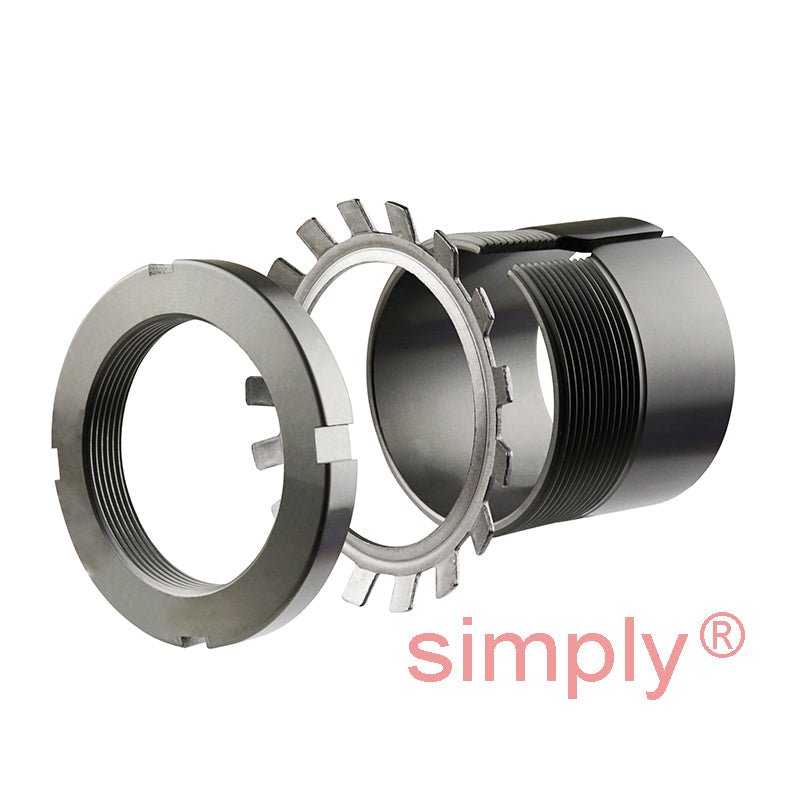

• SKF H215 Adaptor Sleeve with Lock Nut and Locking Device for 65mm Shaft
1 1

SKU: H215-SKF

SKF H215 Adaptor Sleeve with Lock Nut and Locking Device for 65mm Shaft

SKF H215 Adaptor Sleeve with Lock Nut and Locking Device for 65mm Shaft
€62,95 ex VAT
€62,95 ex VAT
Sale Sold out

In stock

Price Break
2+ €47,68
5+ €45,00
10+ €44,47
20+ €43,93
49+ €43,39
74+ €42,86
99+ €40,18
199+ €39,64
249+ €39,11
499+ €38,57
999+ €37,50
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
65mm
Outside Diameter:
98mm
Width:
43mm
Technical
--- Dimensions
d1 65mm
d 75mm
d3 98mm
B1 43mm
B2 14.5mm
G Thread 75x2mm
Weight 0.66 kg
--- Assembly Parts
Sleeve H215
Nut KM15
Washer MB15
Hydraulic nut HMV15E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1215K+taper+self+open>1215K</a>
