• SKF H2319 Adaptor Sleeve with Lock Nut and Locking Device for 85mm Shaft
1 1

SKU: H2319-SKF

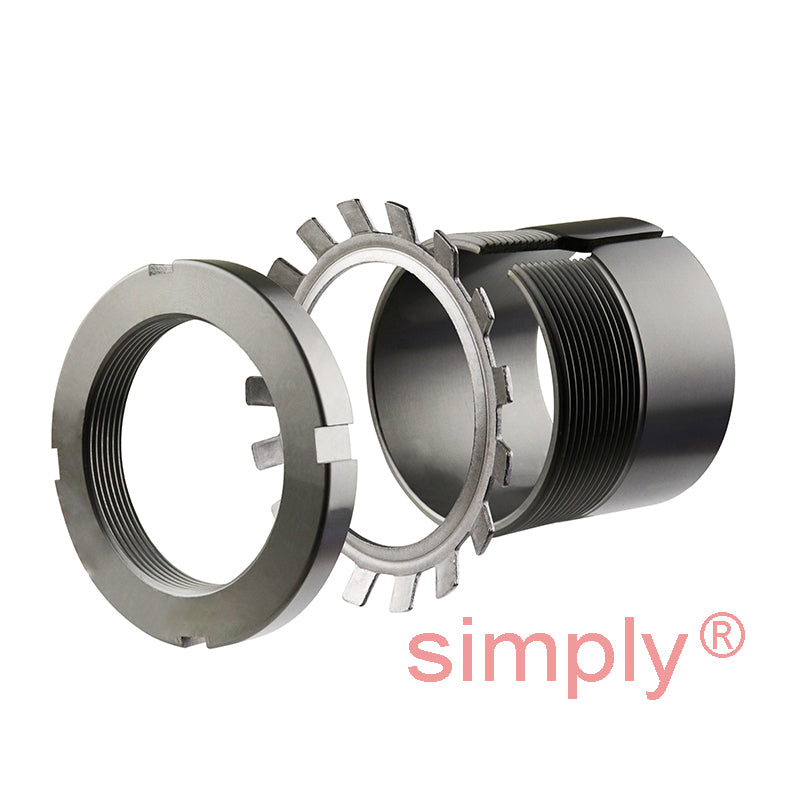

SKF H2319 Adaptor Sleeve with Lock Nut and Locking Device for 85mm Shaft

SKF H2319 Adaptor Sleeve with Lock Nut and Locking Device for 85mm Shaft
£119.83 ex VAT£143.80inc. VAT
£119.83 ex VAT£143.80 inc. VAT
Sale Sold out

In stock

Price Break
2+ £106.64
5+ £100.65
10+ £99.45
20+ £98.26
49+ £97.06
74+ £95.86
99+ £89.87
199+ £88.67
249+ £87.47
499+ £86.27
999+ £83.88
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
85mm
Outside Diameter:
125mm
Width:
90mm
Technical
--- Dimensions
d1 85mm
d 95mm
d3 125mm
B1 90mm
B2 19mm
G Thread 95x2mm
Weight 1.8 kg
--- Assembly Parts
Sleeve H2319
Nut KM19
Washer MB19
Hydraulic nut HMV19E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2319K+taper+self+open>2319K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22319K+taper>22319K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2319K+taper>C2319K</a>
