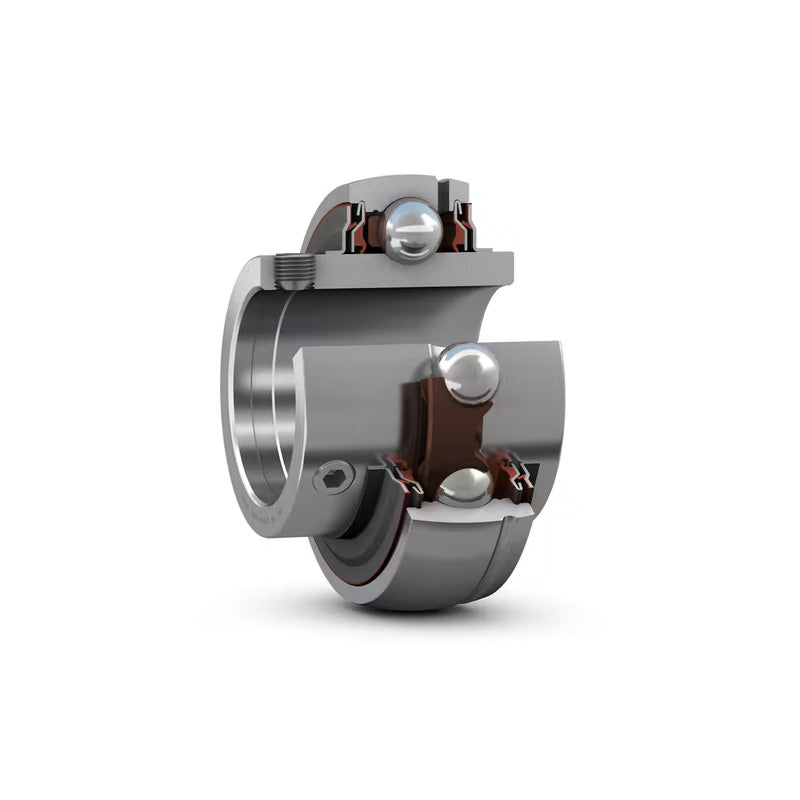

SKF YAR209-112-2F Grub Screw Bearing Insert 1-3/4 inch 85mm Outside Diameter

Page Feedback?

SKU: YAR209-112-2F-SKF

£47.53 ex VAT

Price Breaks

Quantity	Prices
10+	£42.30 each
20+	£39.93 each
30+	£39.45 each
40+	£38.98 each
50+	£38.50 each
75+	£38.03 each
100+	£35.65 each

10+ £42.30 each
20+ £39.93 each
30+ £39.45 eachClick Here…

In Stock

Add to a Save List

SKF YAR-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAR 2 series bearings have an extended inner ring on both sides. This reduces the extent to which the inner ring can tilt on the shaft enabling the bearing to run smoothly. The outer ring has two lubrication holes as standard. The bearings are fitted with the rugged standard integral seal. Plain sheet steel flingers are also provided if the bearing designation has a suffix of 2F, or rubberised sheet steel flingers (multiple seal) if the bearing designation has a suffix of 2RF.
Benefits: Reduces inner ring tilting on shaft enabling the bearing to run smoothly, lubrication holes allow easy re-lubrication

Brand / Quality: SKF - High Quality
Inside Diameter: 44.45mm = 1.75 (1-3/4) inch
Outside Diameter: 85mm
Style: YAR
Grease Guns?

Click Here

Grease?

Click Here

d	=	1-3/4 inch
D	=	85mm
B	=	49.2mm
C	=	22mm
d1	=	56.8mm
s1	=	30.2mm
r1r2 min	=	1mm
Static load Cr	=	21.6 kN
Dynamic load Cor	=	33.2 kN
Fatigue load limit Pu	=	0.915 kN
Limiting speed	=	4300 rpm
Weight	=	0.62 kg
