SKU: UCFCX06

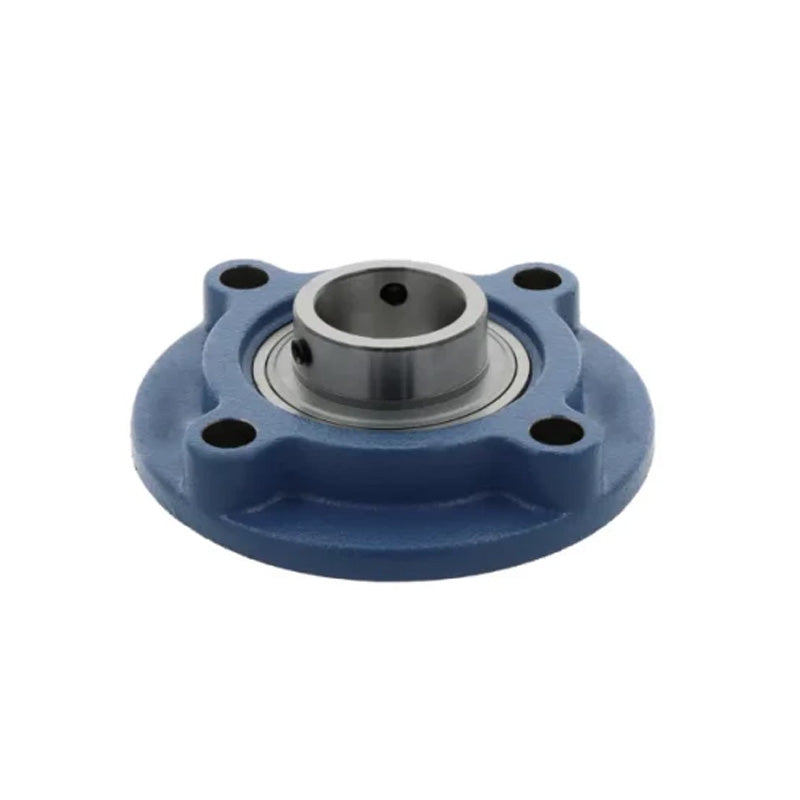

UCFCX06 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert
UCFCX06 Metric Four Bolt Cast Iron Round Flanged Housing with 30mm Insert
Regular price
£15.37
ex VAT£18.44inc. VAT
Regular price
Sale price
£15.37
ex VAT£18.44
inc. VAT
In stock
Price Break
10+
£13.68
19+
£12.91
29+
£12.76
39+
£12.60
49+
£12.45
74+
£12.30
99+
£11.53
199+
£11.37
249+
£11.22
499+
£11.07
999+
£10.76
Couldn't load pickup availability
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 74.2mm
Technical
Technical
| d | 30mm |
|---|---|
| a | 127mm |
| p | 105mm |
| (e) | 74.2mm |
| i | 8mm |
| s | 12mm |
| j | 9.5mm |
| k | 9.5mm |
| g | 22.5mm |
| f | 85mm |
| z | 33.4mm |
| B | 42.9mm |
| n | 17.5mm |
| Bolt size | M10 |
| Bearing no | UCX06 |
| Housing no | FCX06 |
| Weight | 1.4 kg |
