SKU: UCHA203

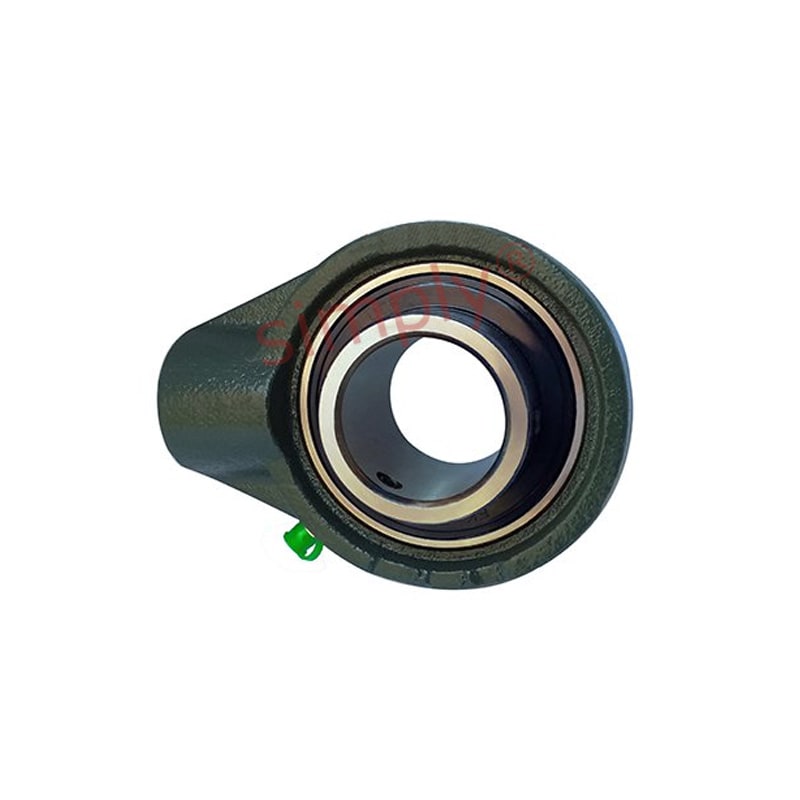

UCHA203 Metric Cast Iron Hanger Bearing Unit with 17mm Bore Insert
UCHA203 Metric Cast Iron Hanger Bearing Unit with 17mm Bore Insert
Regular price
£13.94
ex VAT£16.73inc. VAT
Regular price
Sale price
£13.94
ex VAT£16.73
inc. VAT
In stock
Price Break
3+
£12.40
4+
£11.71
9+
£11.57
19+
£11.43
49+
£11.29
99+
£11.15
499+
£10.45
999+
£10.31
1999+
£10.17
2999+
£10.03
4999+
£9.76
Share this product
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Style:
- UCHA
Technical
Technical
| d | 17mm |
|---|---|
| h | 2-33/64 inch |
| w | 3-25/32 inch |
| b | 2-33/64 inch |
| c | 0 inch |
| a | 1-37/64 inch |
| s | G-3/4 |
| l | 3/4 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bearing no | UC203 |
| Housing no | HA203 |
| Weight | 0.617 kg |
