SKU: UCHA209-26

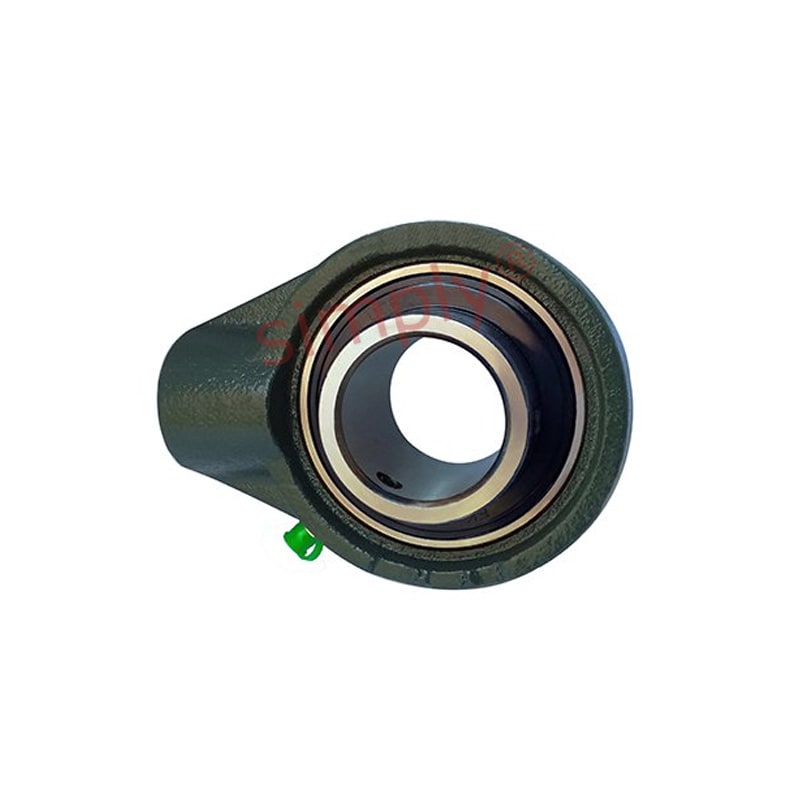

UCHA209-26 Imperial Cast Iron Hanger Bearing Unit with 1-5/8 inch Bore Insert
UCHA209-26 Imperial Cast Iron Hanger Bearing Unit with 1-5/8 inch Bore Insert
Regular price
£34.17
ex VAT£41.00inc. VAT
Regular price
Sale price
£34.17
ex VAT£41.00
inc. VAT
In stock
Price Break
3+
£30.41
4+
£28.70
9+
£28.36
19+
£28.02
49+
£27.68
99+
£27.33
499+
£25.63
999+
£25.28
1999+
£24.94
2999+
£24.60
4999+
£23.92
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Style:
- UCHA
Technical
Technical
| d | 1-5/8 inch |
|---|---|
| h | 3-15/64 inch |
| w | 5-23/64 inch |
| b | 4-1/4 inch |
| c | 13/64 inch |
| a | 1-57/64 inch |
| s | G1 |
| l | 53/64 inch |
| B | 1.937 inch |
| n | 0.748 inch |
| Bearing no | UC209-26 |
| Housing no | HA209 |
| Weight | 1.814 kg |
