Renold Synergy 06B-1-NO30 BS Simplex Chain Double Cranked Link 3/8 inch Pitch
Renold Synergy 06B-1-NO30 BS Simplex Chain Double Cranked Link 3/8 inch Pitch
Regular price
£12.20
ex VAT£14.64inc. VAT
Regular price
Sale price
£12.20
ex VAT£14.64
inc. VAT
In stock
Price Break
10+
£10.86
19+
£10.25
29+
£10.13
39+
£10.00
49+
£9.88
74+
£9.76
99+
£9.15
199+
£9.03
249+
£8.91
499+
£8.78
999+
£8.54
Description
Description

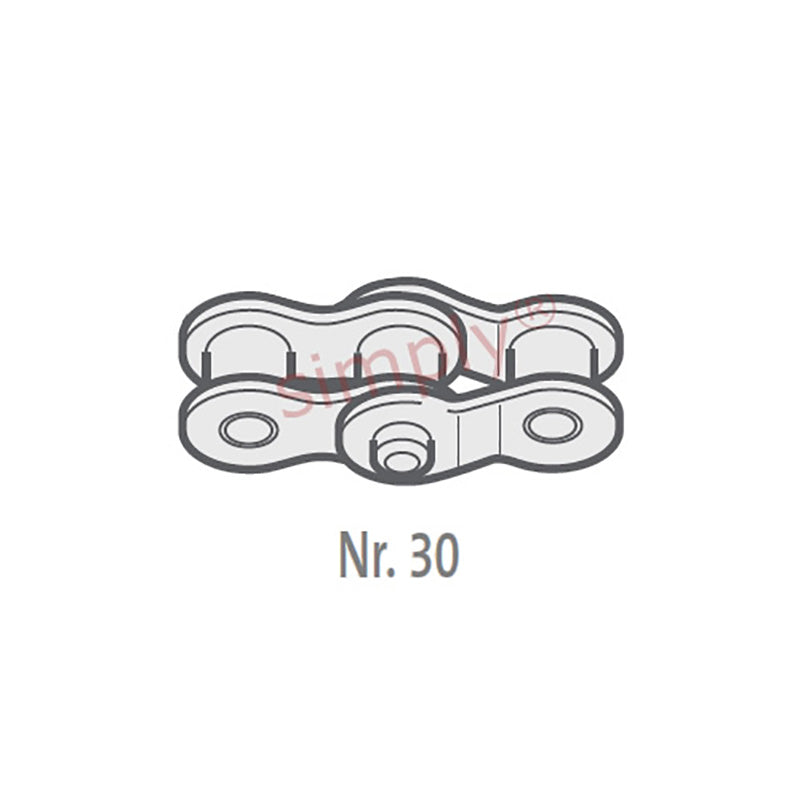

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 5.72mm |
| Roller Diameter max (C) | 6.35mm |
| Plate Height max (D) | 8.2mm |
| Plate Width Inner max (E) | 1.29mm |
| Plate Width Outer max (F) | 1.04mm |
| Pin Diameter max (G) | 3.28mm |
| Pin Length max (H1) | 12.5mm |
| Connecting Link Extension max (J) | 1.3mm |
| ISO606 Tensile Strength min | 8900 N |
| Weight | 0.002kg/m |
