SKU: 12B-1-SYN-NO30-RENOLD
Renold Synergy 12B-1-NO30 BS Simplex Chain Double Cranked Link 3/4 inch Pitch
Renold Synergy 12B-1-NO30 BS Simplex Chain Double Cranked Link 3/4 inch Pitch
Regular price
£22.56
ex VAT£27.07inc. VAT
Regular price
Sale price
£22.56
ex VAT£27.07
inc. VAT
In stock
Price Break
10+
£20.08
19+
£18.95
29+
£18.72
39+
£18.50
49+
£18.27
74+
£18.05
99+
£16.92
199+
£16.69
249+
£16.47
499+
£16.24
999+
£15.79
Description
Description

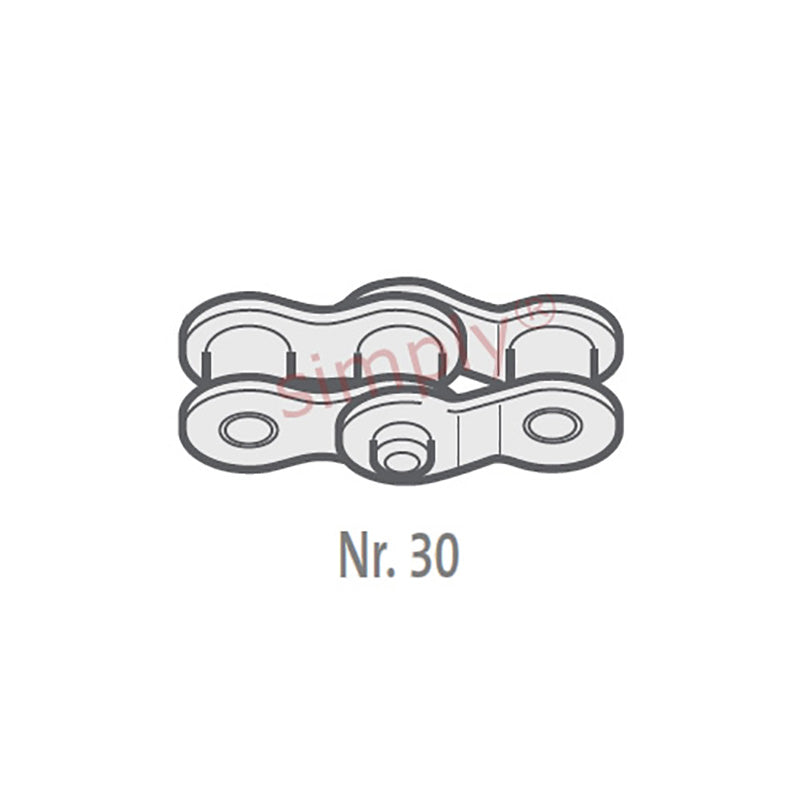

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16mm |
| Plate Width Inner max (E) | 1.81mm |
| Plate Width Outer max (F) | 1.81mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H1) | 21.9mm |
| Connecting Link Extension max (J) | 2.6mm |
| ISO606 Tensile Strength min | 28900 N |
| Weight | 0.008kg/m |
