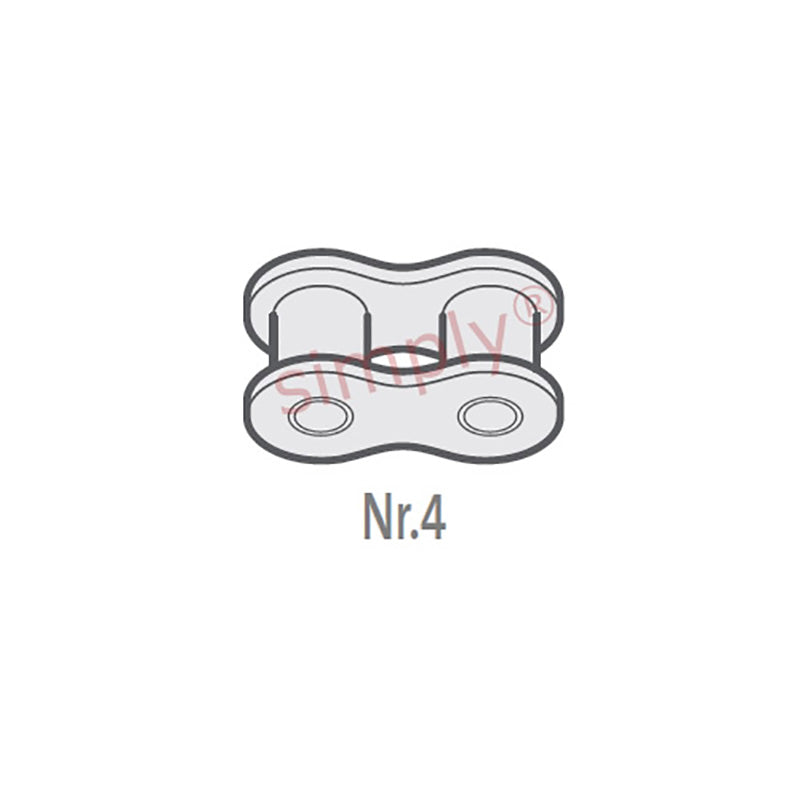

Renold SD 16B-1-NO4 BS Simplex Chain Inner Link 1 inch Pitch
£6.18
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 2+ | £5.50 each |
| 5+ | £5.19 each |
| 10+ | £5.13 each |
| 29+ | £5.06 each |
| 49+ | £5.00 each |
| 75+ | £4.94 each |
| 100+ | £4.63 each |
| 200+ | £4.57 each |
| 250+ | £4.51 each |
| 500+ | £4.45 each |
| 1000+ | £4.32 each |
In Stock
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.05mm |
| Plate Width Inner max (E) | = | 4mm |
| Plate Width Outer max (F) | = | 3.2mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H1) | = | 36mm |
| Connecting Link Extension max (J) | = | 1.2mm |
| ISO606 Tensile Strength min | = | 60000 N |
| Weight | = | 0.06kg/m |
