Average Rating (2 Reviews)

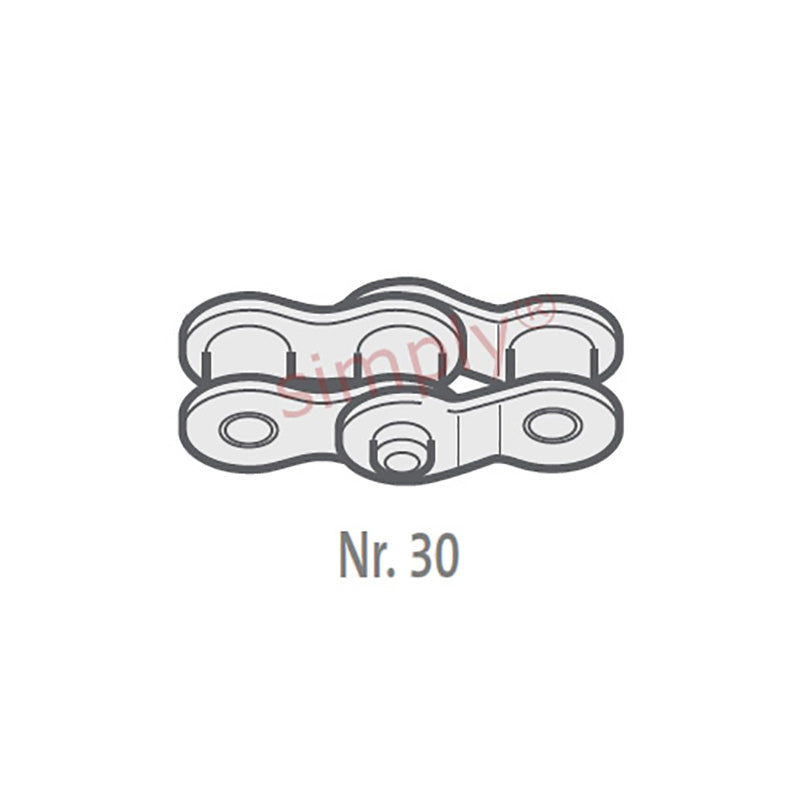

Renold Blue Box 10B-1-NO30 BS Simplex Double Cranked Link 5/8 inch Pitch
£9.55
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 2+ | £8.50 each |
| 5+ | £8.02 each |
| 10+ | £7.92 each |
| 29+ | £7.83 each |
| 49+ | £7.73 each |
| 75+ | £7.64 each |
| 100+ | £7.16 each |
In Stock
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H1) | = | 18.8mm |
| Connecting Link Extension max (J) | = | 2.5mm |
| ISO606 Tensile Strength min | = | 22200 N |
| Weight | = | 0.009kg/m |
