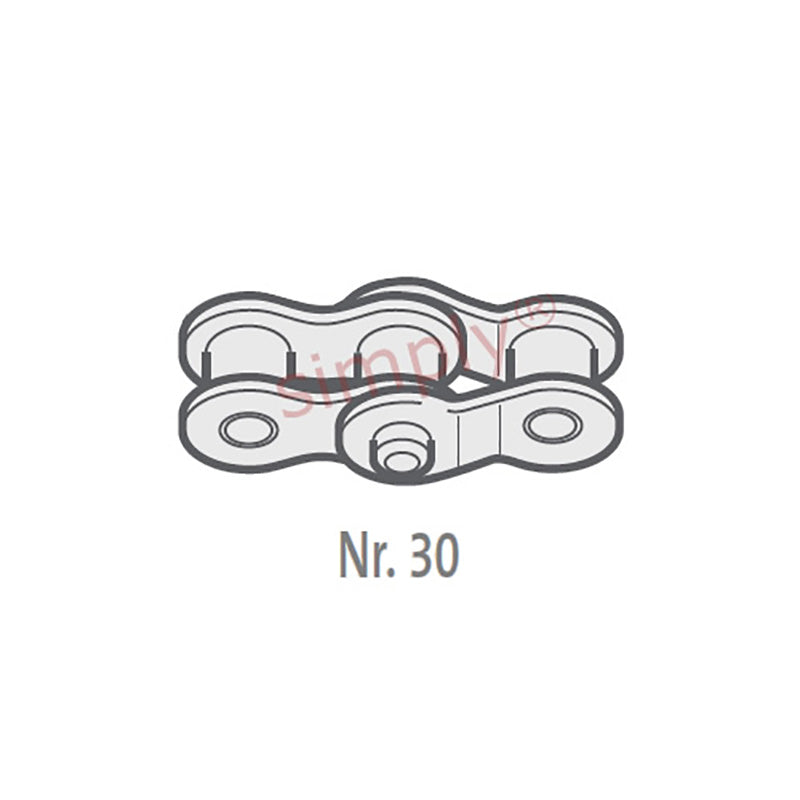

Renold Blue Box 12B-1-NO30 BS Simplex Double Cranked Link 3/4 inch Pitch
£10.32
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 2+ | £9.18 each |
| 5+ | £8.67 each |
| 10+ | £8.57 each |
| 29+ | £8.46 each |
| 49+ | £8.36 each |
| 75+ | £8.26 each |
| 100+ | £7.74 each |
In Stock
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 11.68mm |
| Roller Diameter max (C) | = | 12.07mm |
| Plate Height max (D) | = | 16mm |
| Plate Width Inner max (E) | = | 1.81mm |
| Plate Width Outer max (F) | = | 1.81mm |
| Pin Diameter max (G) | = | 5.72mm |
| Pin Length max (H1) | = | 21.9mm |
| Connecting Link Extension max (J) | = | 2.6mm |
| ISO606 Tensile Strength min | = | 28900 N |
| Weight | = | 0.008kg/m |
