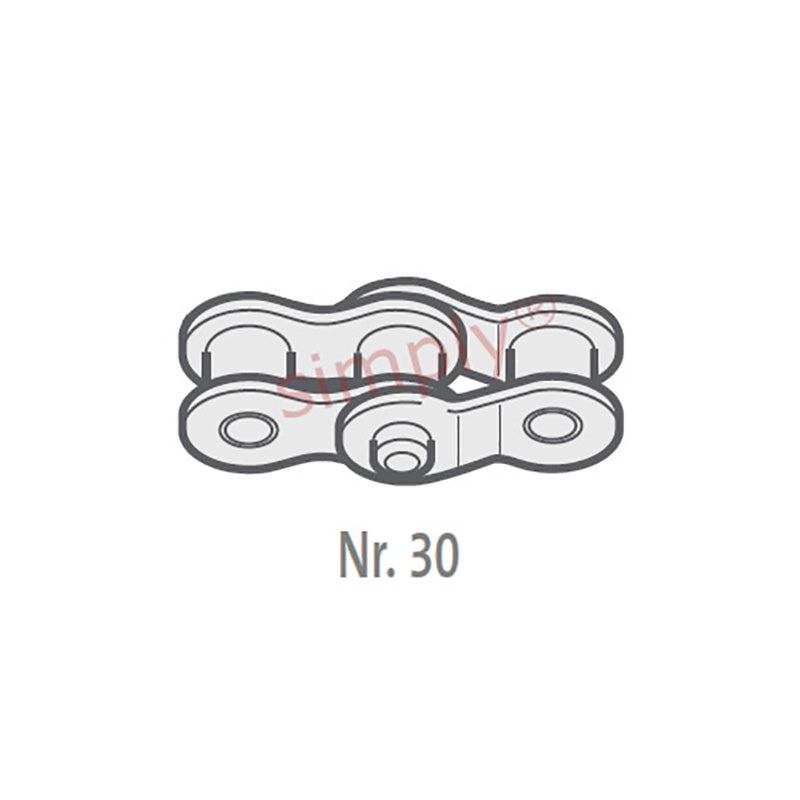

Renold Blue Box 05B-1-NO30 BS Simplex Double Cranked Link 5/16 inch Pitch
£9.09
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 2+ | £8.09 each |
| 5+ | £7.64 each |
| 10+ | £7.55 each |
| 29+ | £7.46 each |
| 49+ | £7.37 each |
| 75+ | £7.27 each |
| 100+ | £6.82 each |
| 200+ | £6.73 each |
| 250+ | £6.64 each |
| 500+ | £6.55 each |
| 1000+ | £6.37 each |
In Stock
| Pitch (A) | = | 0.315 inch |
| Pitch (A) | = | 7.93mm |
| Inside Width min (B) | = | 3mm |
| Roller Diameter max (C) | = | 5mm |
| Plate Height max (D) | = | 7.11mm |
| Plate Width Inner max (E) | = | 0.76mm |
| Plate Width Outer max (F) | = | 0.76mm |
| Pin Diameter max (G) | = | 2.31mm |
| Pin Length max (H1) | = | 8.6mm |
| Connecting Link Extension max (J) | = | 1.5mm |
| ISO606 Tensile Strength min | = | 4400 N |
| Weight | = | 0.2kg/m |
