SKU: 6226-ZZ/C3-NACHI

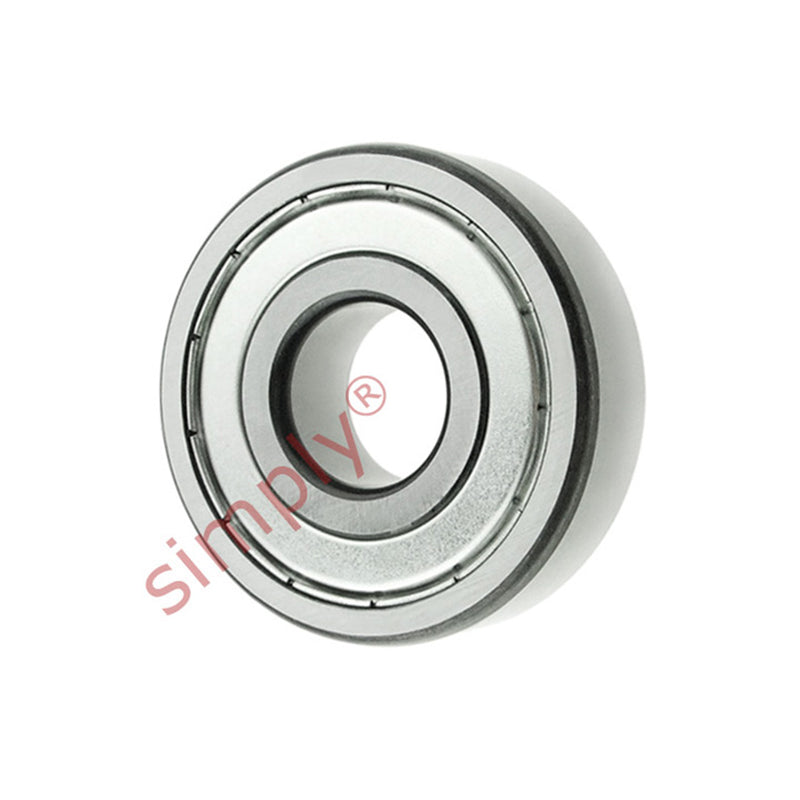

NACHI 6226ZZC3 Metal Shielded Deep Groove Ball Bearing 130x230x40mm
NACHI 6226ZZC3 Metal Shielded Deep Groove Ball Bearing 130x230x40mm
Regular price
£3,151.63
ex VAT£3,781.96inc. VAT
Regular price
Sale price
£3,151.63
ex VAT£3,781.96
inc. VAT
Equivalent to: 6226ZZEC3 62262ZC3 6226.2ZC3 6226KDDC3 6226DDC3 62262ZRC3 6226FFC3
In stock
Price Break
5+
£2,804.95
9+
£2,647.37
19+
£2,615.86
29+
£2,584.34
49+
£2,552.82
74+
£2,521.31
99+
£2,363.72
199+
£2,332.21
249+
£2,300.69
499+
£2,269.18
999+
£2,206.14
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6226ZZEC3 62262ZC3 6226.2ZC3 6226KDDC3 6226DDC3 62262ZRC3 6226FFC3
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 230mm
- Width:
- 40mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 130mm |
|---|---|
| Outside Diameter D | 230mm |
| Width B | 40mm |
| Min radius r | 3mm |
| Dynamic load | 167000 kN |
| Static load | 146000 kN |
| Max speed | 2700 rpm |
| da min | 144mm |
| Da max | 216mm |
| ra max | 2.5mm |
| Weight | 5.82 kg |
