15 Tooth 06B Simplex Pilot Bore Sprocket for 3/8 inch Pitch Chain
Equivalent to: PS05015 06B1 PS31-15
£7.48
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 5+ | £6.66 each |
| 9+ | £6.29 each |
| 19+ | £6.21 each |
| 29+ | £6.14 each |
| 49+ | £6.06 each |
| 74+ | £5.99 each |
| 99+ | £5.61 each |
| 199+ | £5.54 each |
| 249+ | £5.46 each |
| 499+ | £5.39 each |
| 999+ | £5.24 each |
In Stock

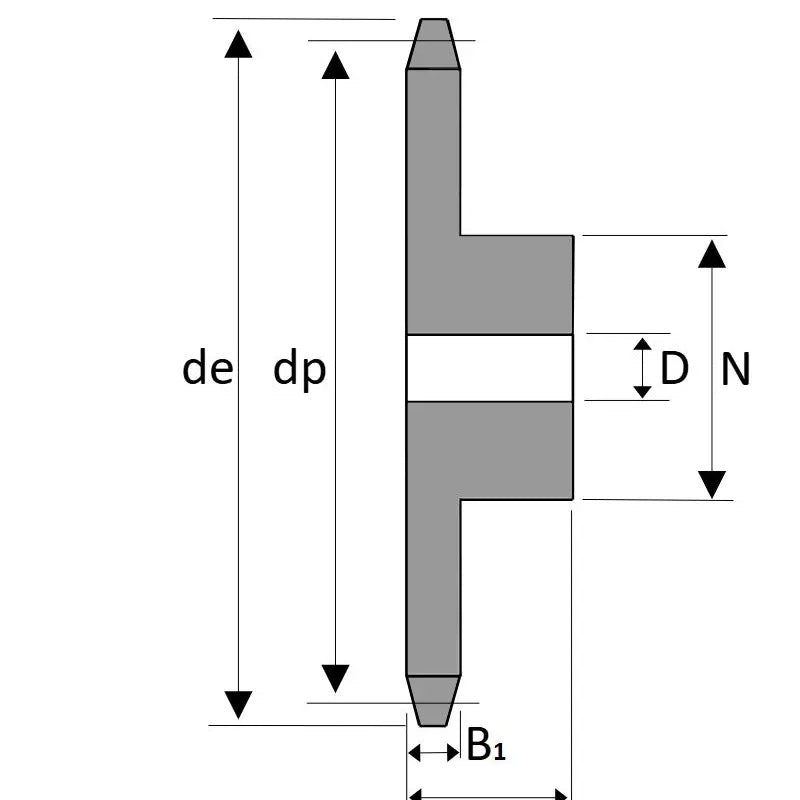

| Tooth Radius r3 | = | 10mm |
| Chamfer c | = | 1mm |
| Tooth Width b1 | = | 5.2mm |
| Tooth Width B1 | = | 5.3mm |
| Tooth Width B2 | = | 15.4mm |
| Tooth Width B3 | = | 25.6mm |
| Pitch | = | 9.525mm |
| Width Between Inner | = | 5.72mm |
| Roller Diameter | = | 6.35mm |
| No. of Teeth | = | 15 |
| Outer Diameter de | = | 49.3mm |
| Pitch Diameter dp | = | 45.81mm |
| Hub Diameter dm | = | 34mm |
| Length Through Bore A | = | 25mm |
| Stock Bore D1 | = | 10mm |
