95 Tooth 08B Simplex Pilot Bore Sprocket for 1/2 inch Pitch Chain
Equivalent to: PS09095 08B1 PS41-095
£78.27
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 5+ | £69.66 each |
| 9+ | £65.74 each |
| 19+ | £64.96 each |
| 29+ | £64.18 each |
| 49+ | £63.40 each |
| 74+ | £62.61 each |
| 99+ | £58.70 each |
| 199+ | £57.92 each |
| 249+ | £57.13 each |
| 499+ | £56.35 each |
| 999+ | £54.79 each |
In Stock

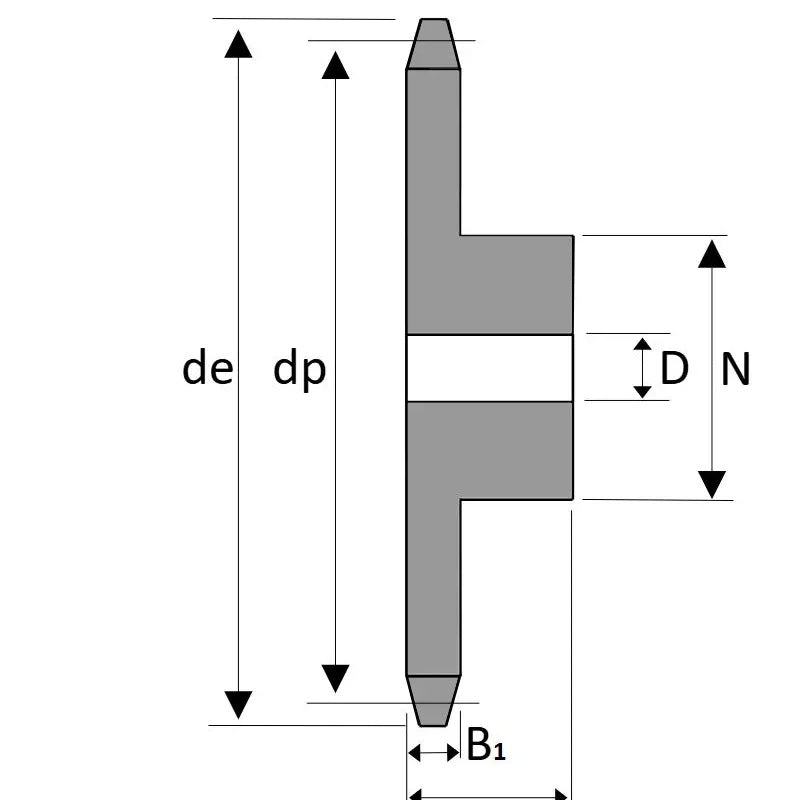

| Tooth Radius r3 | = | 13mm |
| Chamfer c | = | 1.3mm |
| Tooth Width b1 | = | 7mm |
| Tooth Width B1 | = | 7.2mm |
| Tooth Width B2 | = | 21mm |
| Tooth Width B3 | = | 34.9mm |
| Pitch | = | 12.7mm |
| Width Between Inner | = | 7.75mm |
| Roller Diameter | = | 8.51mm |
| No. of Teeth | = | 95 |
| Outer Diameter de | = | 390.1mm |
| Pitch Diameter dp | = | 384.11mm |
| Hub Diameter dm | = | 80mm |
| Length Through Bore A | = | 45mm |
| Stock Bore D1 | = | 24mm |
