20 Tooth 16B Simplex Pilot Bore Sprocket for 1 inch Pitch Chain
Equivalent to: PS12020 16B1 PS81-20
£29.30
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 5+ | £26.08 each |
| 9+ | £24.61 each |
| 19+ | £24.32 each |
| 29+ | £24.03 each |
| 49+ | £23.73 each |
| 74+ | £23.44 each |
| 99+ | £21.98 each |
In Stock

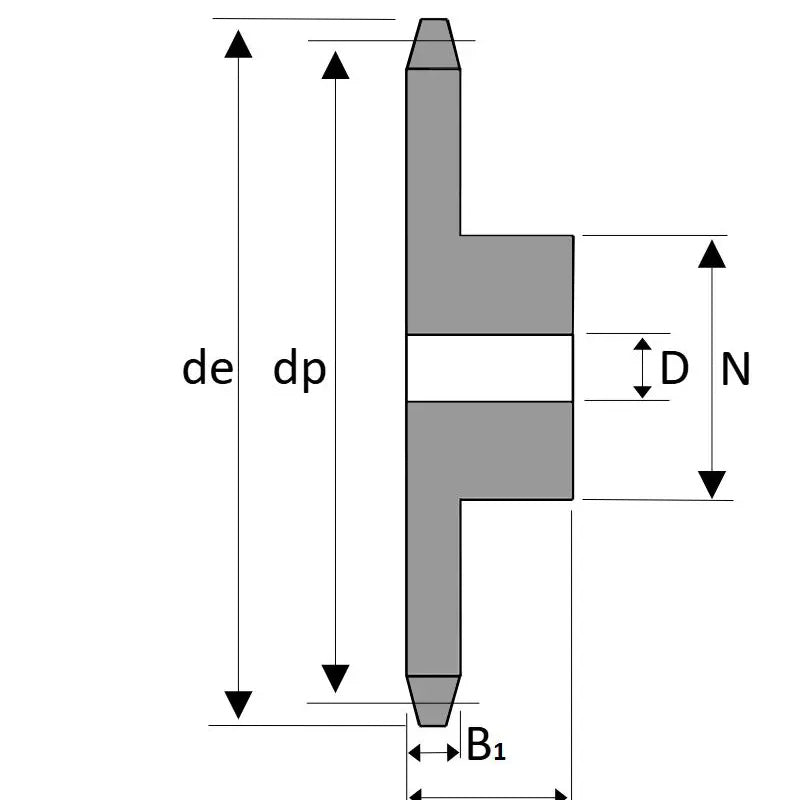

| Tooth Radius r3 | = | 26mm |
| Chamfer c | = | 2.5mm |
| Tooth Width b1 | = | 15.8mm |
| Tooth Width B1 | = | 16.2mm |
| Tooth Width B2 | = | 47.7mm |
| Tooth Width B3 | = | 79.6mm |
| Pitch | = | 25.4mm |
| Width Between Inner | = | 17.02mm |
| Roller Diameter | = | 15.88mm |
| No. of Teeth | = | 20 |
| Outer Diameter de | = | 173.2mm |
| Pitch Diameter dp | = | 162.38mm |
| Hub Diameter dm | = | 100mm |
| Length Through Bore A | = | 45mm |
| Stock Bore D1 | = | 20mm |
