57 Tooth 20B Simplex Pilot Bore Sprocket for 1-1/4 inch Pitch Chain
Equivalent to: PS13057 20B1
£317.43
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 5+ | £282.51 each |
| 9+ | £266.64 each |
| 19+ | £263.46 each |
| 29+ | £260.29 each |
| 49+ | £257.12 each |
| 74+ | £253.94 each |
| 99+ | £238.07 each |
| 199+ | £234.90 each |
| 249+ | £231.72 each |
| 499+ | £228.55 each |
| 999+ | £222.20 each |
In Stock

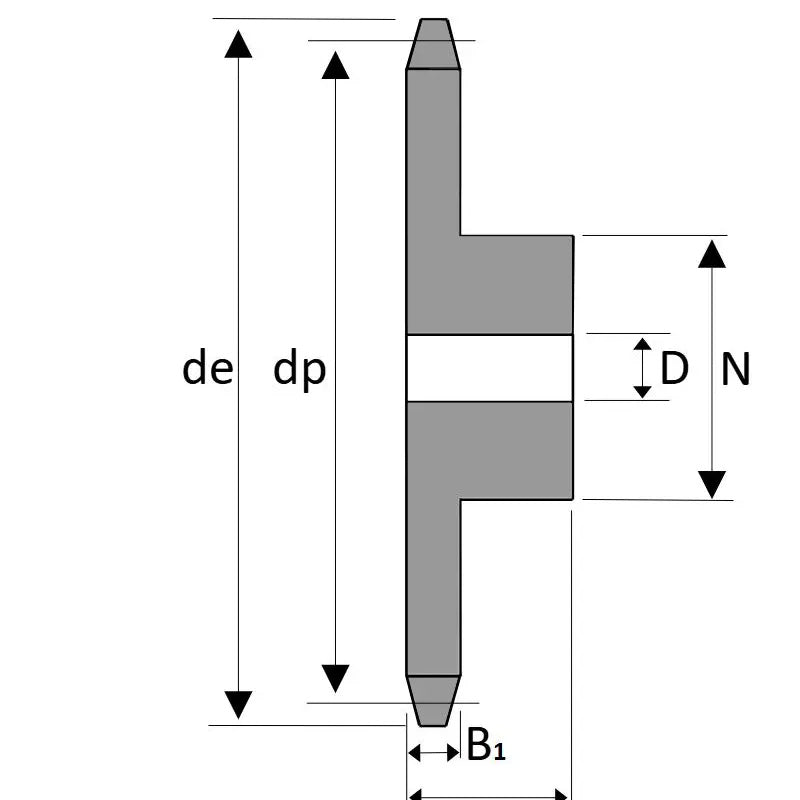

| Tooth Radius r3 | = | 32mm |
| Chamfer c | = | 3.5mm |
| Tooth Width b1 | = | 18.2mm |
| Tooth Width B1 | = | 18.5mm |
| Tooth Width B2 | = | 54.6mm |
| Tooth Width B3 | = | 91mm |
| Pitch | = | 31.75mm |
| Width Between Inner | = | 19.56mm |
| Roller Diameter | = | 19.05mm |
| No. of Teeth | = | 57 |
| Outer Diameter de | = | 591.5mm |
| Pitch Diameter dp | = | 576.36mm |
| Hub Diameter dm | = | 135mm |
| Length Through Bore A | = | 80mm |
| Stock Bore D1 | = | 40mm |
