11 Tooth 32B Simplex Pilot Bore Sprocket for 2 inch Pitch Chain
Equivalent to: 32B1
£121.43
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 5+ | £108.07 each |
| 9+ | £102.00 each |
| 19+ | £100.78 each |
| 29+ | £99.57 each |
| 49+ | £98.35 each |
| 74+ | £97.14 each |
| 99+ | £91.07 each |
| 199+ | £89.86 each |
| 249+ | £88.64 each |
| 499+ | £87.43 each |
| 999+ | £85.00 each |
In Stock

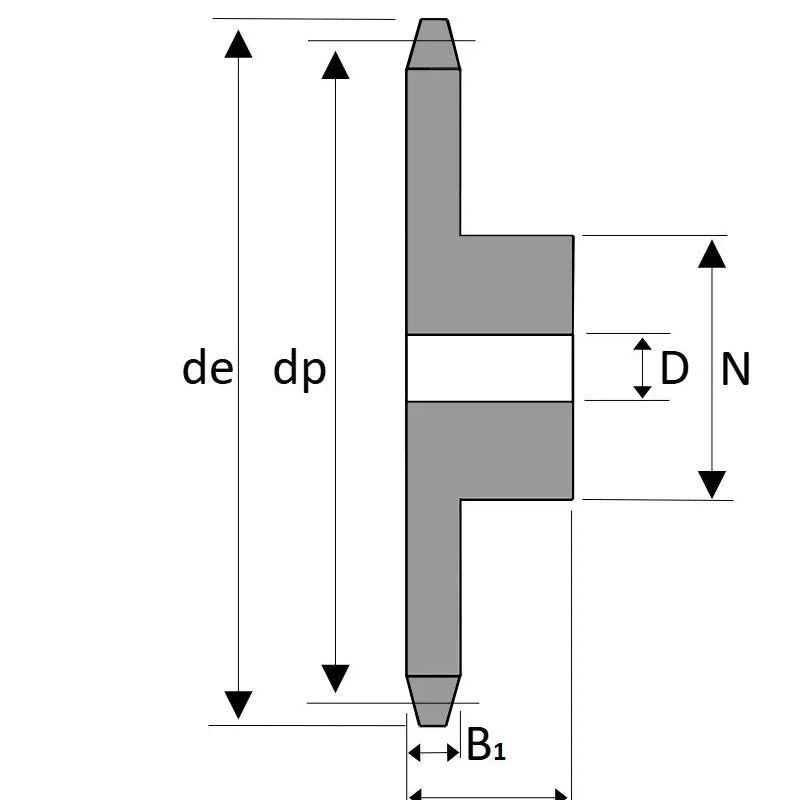

| Tooth Radius r3 | = | 51mm |
| Chamfer c | = | 6mm |
| Tooth Width b1 | = | 28.8mm |
| Tooth Width B1 | = | 29.4mm |
| Tooth Width B2 | = | 87.4mm |
| Tooth Width B3 | = | 146mm |
| Pitch | = | 50.8mm |
| Width Between Inner | = | 30.99mm |
| Roller Diameter | = | 29.21mm |
| No. of Teeth | = | 11 |
| Outer Diameter de | = | 200.8mm |
| Pitch Diameter dp | = | 180.31mm |
| Hub Diameter dm | = | 125mm |
| Length Through Bore A | = | 80mm |
| Stock Bore D1 | = | 30mm |
