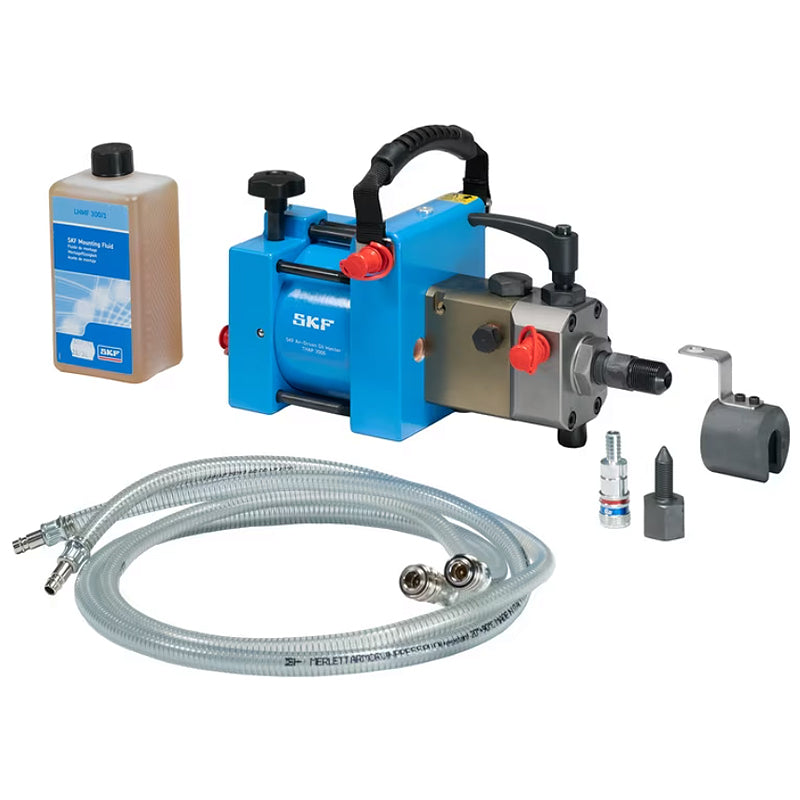

SKF Air-driven Oil Injector THAP Series: Air-driven pumps and oil injectors are used for mounting and dismounting OK couplings, for dismounting large pressure joints such as bearings, flywheels, couplings, railway wheels and in many similar applications. The pumps consist of a high pressure hydraulic pump, driven by an air piston. The units are supplied in a sturdy case including oil suction and return hoses with quick connect couplings. The air driven pumps can also be supplied in complete sets which consists of pump, pressure gauge, high pressure pipe and connection nipples. Benefits: Time savings compared to hand operated pumps. Continuous supply of oil Note: Portable
Brand / Quality: SKF - High Quality
Technical Information
Maximum pressure
=
400 Mpa (4000 bar)
Volume per stroke
=
0.64 ml
Air Pressure
=
3-7 bar
Air Pressure Limiter
=
Yes, 7 bar (Max)
Air Consumption
=
200 l/min
Pressure Ratio
=
1:500
Pressure Gauge
=
Optional
Oil Container
=
No
Oil Outlet
=
G 3/4 thread
Oil Viscosity
=
1500mm (Max)
Operating Temperature
=
0 - 45 deg C
Dimensions and Weights
Dimensions
=
171x405x202mm
Case Dimensions
=
690x245x310mm
Product Weight
=
13 kg
Total Product Weight
=
21.5kg
Product Contents
1x
=
Air driven pump (400 MPa)
2x
=
Low pressure hoses with couplings 1.5m (4.9ft)
1x
=
Air hose coupling (f)
1x
=
Mounting Fluid 1L (0.22 gal)
1x
=
Instructions for use
1x
=
Carrying case
No further information is available.
