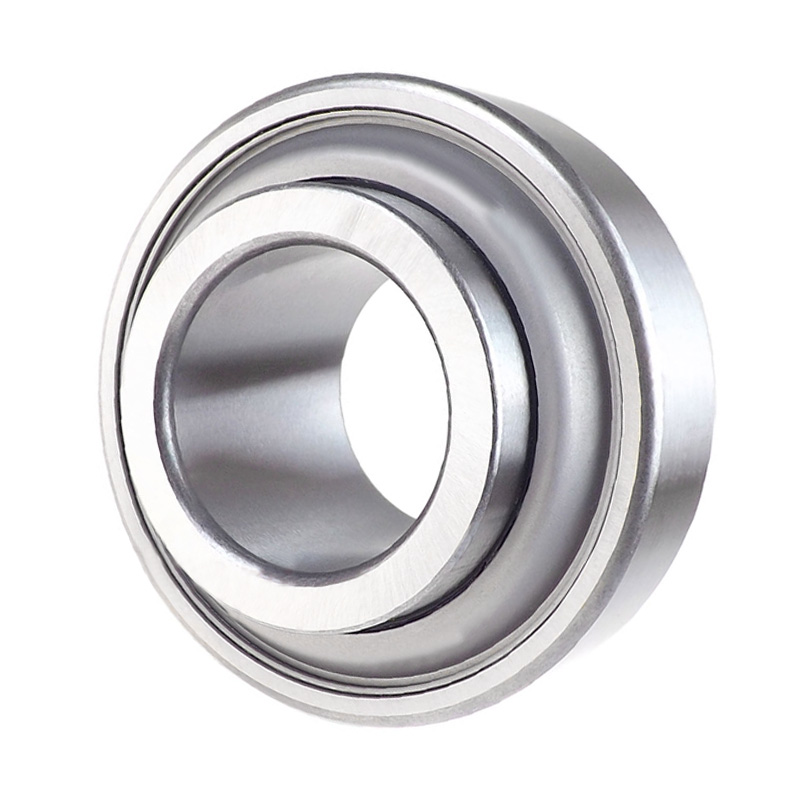

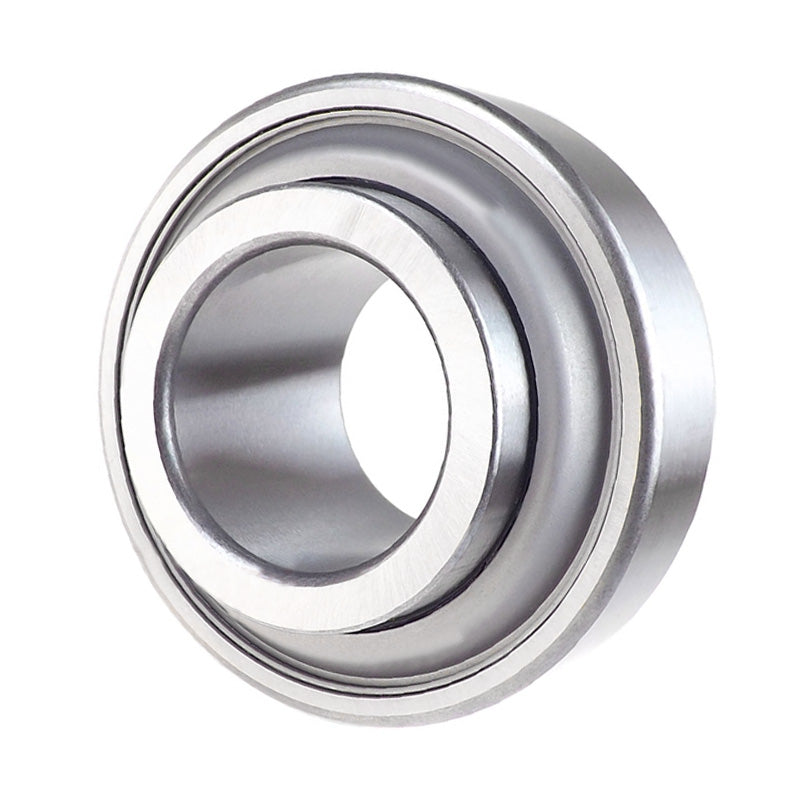

Major Branded W208PP10 Gang Disc Harrow Parallel Outer Round Bore Standard Non-Relubricatable Bearing 1.5005x3.1496x1.6875 inch

Page Feedback?

Equivalent to: DC208TT10, 24RB8-208E3

Major Branded W208PP10 Gang Disc Harrow Parallel Outer Round Bore Standard Non-Relubricatable Bearing 1.5005x3.1496x1.6875 inch

SKU: W208PP10-MB

£14.78 ex VAT

Price Breaks

Quantity	Prices
5+	£13.15 each
9+	£12.42 each
19+	£12.27 each
29+	£12.12 each
49+	£11.97 each
74+	£11.82 each
99+	£11.08 each

5+ £13.15 each
9+ £12.42 each
19+ £12.27 eachClick Here…

In Stock

Add to a Save List

Gang Disc
Application conditions:

Utilizes two to three support bearings on a common shaft with several disks spaced with spools
Constant and unpredictable movement of the gang shaft can generate severe stress on the internal components of the support bearings
A great working depth places the bearings directly into the flow of soil and crop residue

Benefits and functional features:

Bolt-on-performance:

Directly interchangeable industry standard units
Static misalignment capability accommodates imprecise mounting surfaces

Increased productivity and bearing life in field:

Dynamic misalignment capability eliminates internal bearing damage
Shock load protection due to high grade ductile iron housing
Exclusive patented sealing system eliminates the need for daily relubrication

Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe

Brand / Quality: PEER - High Quality
Inside Diameter: 38.12mm = 1.501 inch
Outside Diameter: 80mm = 3.149 inch
Width: 42.87mm = 1.687 (1-11/16) inch

A/d	=	1.5005 inch = 38.113mm (Tolerance +.0000 to minus 0.0005)
D	=	3.1496 inch = 80mm (Tolerance +.0000 to minus 0.0005)
Bi	=	1.6875 inch = 42.862mm (Tolerance +.0000 to minus 0.005)
Be	=	0.8268 inch = 21mm (Tolerance +.0000 to minus 0.005)
Seal/Shield Type	=	P, TRL Seal
Load Ratings Dynamic	=	7340 lbf
Load Ratings Static	=	3650 lb
