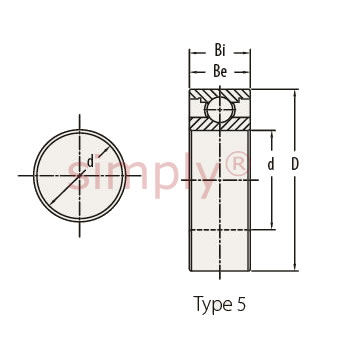

Major Branded 203NPP9 Disc Opener Round Bore Bearing 0.626x1.5748x0.51 inch

Disc Opener
Application conditions:

• Single disc or double disc arrangements are used to open the furrow
• Bearings are pressed into the housing which is riveted or screwed to the disc. The disc assembly is bolted to the machine frame
• High loads are encountered in no-till farming and due to angle of pull
• Rigid assembly is required for a precise disc mounting which creates a consistent furrow
• Dusty and sometimes moist environment

• HUB assembly is available for ease of mounting
• Reduced labour cost and eliminate damage due to incorrect assembly

• Optimized internal geometry
• High load capacity
• High contamination feature package with exclusive sealing system

• Rigid disc
• Minimized operating internal clearance

Seal Type: R, RST
Typical Application: Lawn and Garden Applications
Typical Environment: Less Contaminative Environment
Contamination Exclusion: Mild/Moderate
Speed Limit: Basic BRG. Size < 205: 3500 RPM, Basic BRG. Size > 205: 2000 RPM
