  • Codex NJ304 Single Row Cylindrical Roller Bearing 20x52x15mm

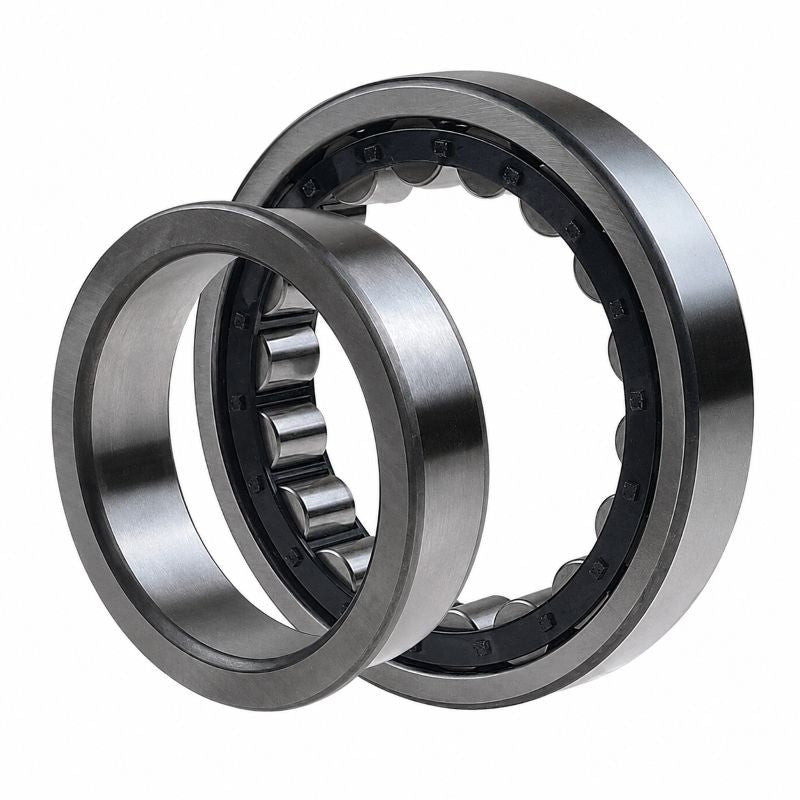

Codex NJ304 Single Row Cylindrical Roller Bearing 20x52x15mm
Great rates on shipping on any order regardless of size

Codex NJ304 Single Row Cylindrical Roller Bearing 20x52x15mm

Spotted a mistake on this product?

0.150000kg

Add to a Save List

Share this product with Friends or Colleagues
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction.
Benefits: Axial location, ease of assembly and fitting
Brand / Quality: Codex - Good Quality
Inside Diameter: 20mm
Outside Diameter: 52mm
Width: 15mm
Seals / Shields: None
Clearance: * Standard
d
=
20mm
D
=
52mm
B
=
15mm
Dynamic load C
=
35.5 kN
Static load Co
=
26 kN
Fatigue load limit Pu
=
3.25 kN
Reference speed
=
15000 rpm
Limiting speed
=
18000 rpm
Weight
=
0.15 kg
d1
=
31.2mm
D1
=
42.4mm
F, E
=
27.5mm
r1r2 min
=
1.1mm
r3r4 min
=
0.6mm
s
=
0.9mm
da min
=
27mm
da max
=
29mm
db min
=
33mm
Da max
=
45mm
ra max
=
1mm
rb max
=
0.6mm
kr
=
0.15
Angle ring
=
HJ304EC
Angle ring weight
=
0.017kg
B1
=
4mm
B2
=
6.5mm
SKF NJ Series Cylindrical Roller Bearing
