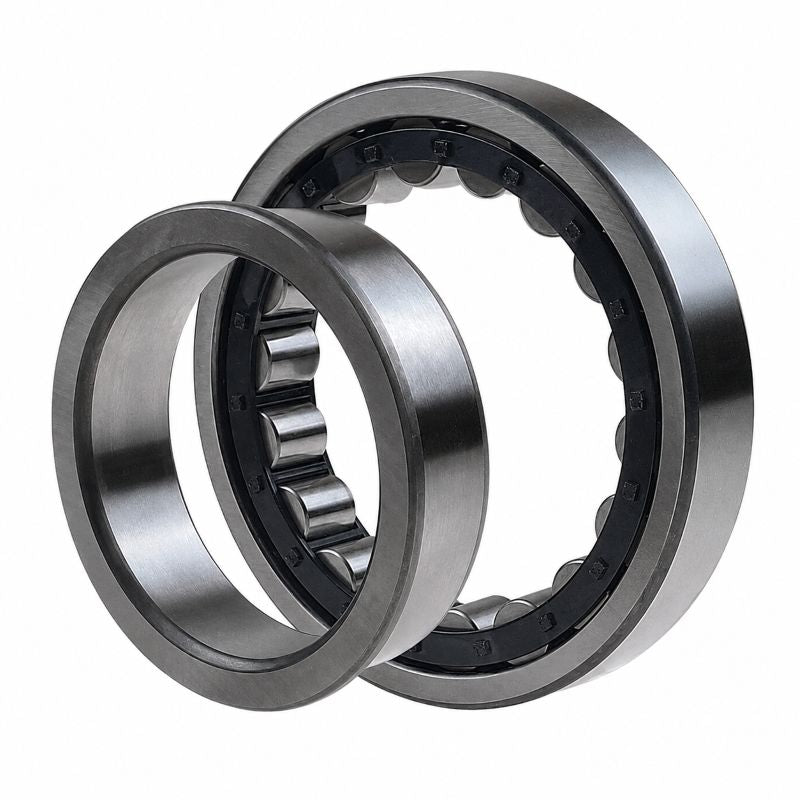

  • Codex NJ203 Single Row Cylindrical Roller Bearing 17x40x12mm
Codex NJ203 Single Row Cylindrical Roller Bearing 17x40x12mm
Great rates on shipping on any order regardless of size

Codex NJ203 Single Row Cylindrical Roller Bearing 17x40x12mm

0.070000kg

Add to a Save List

NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction.
Benefits: Axial location, ease of assembly and fitting
Brand / Quality: Codex - Good Quality
Inside Diameter: 17mm
Outside Diameter: 40mm
Width: 12mm
Seals / Shields: None
Clearance: * Standard
d
=
17mm
D
=
40mm
B
=
12mm
Dynamic load C
=
17.2 kN
Static load Co
=
14.3 kN
Fatigue load limit Pu
=
1.73 kN
Reference speed
=
19000 rpm
Limiting speed
=
22000 rpm
Weight
=
0.07 kg
Cage options
=
ML
d1
=
25mm
D1
=
32.4mm
F, E
=
22.1mm
r1r2 min
=
0.6mm
r3r4 min
=
0.3mm
s
=
1mm
da min
=
21mm
da max
=
21mm
db min
=
27mm
Da max
=
35.8mm
ra max
=
0.6mm
rb max
=
0.3mm
kr
=
0.15
SKF NJ Series Cylindrical Roller Bearing
