Major Branded HRC110F Coupling Assembly Inner Facing Taper Bores Max Bush Bore 42mm / 1-5/8 inch with Natural Rubber Insert
Equivalent to: HRC110F-1610 HRC110F-1610 HRC110I DRC110F+DRC110F+DRC110I
£33.54
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £29.85 each |
| 19+ | £28.17 each |
| 29+ | £27.84 each |
| 39+ | £27.50 each |
| 49+ | £27.17 each |
| 74+ | £26.83 each |
| 99+ | £25.16 each |
| 199+ | £24.82 each |
| 249+ | £24.48 each |
| 499+ | £24.15 each |
| 999+ | £23.48 each |
In Stock

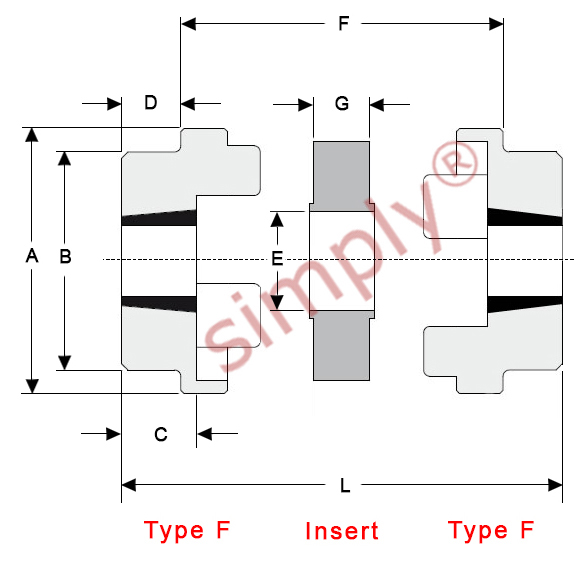

| Nominal Torque | = | 160 Nm |
| Overall Diameter A | = | 112mm |
| Hub Diameter B | = | 100mm |
| Assembled Length F | = | 45.5mm |
| Insert Bore Dia E | = | 45mm |
| Insert Width G | = | 29.5mm |
| Parallel Misalignment | = | 0.3mm |
| Assembly Weight | = | 3.29kg |
| L width | = | 82.5mm1 |
| F Type - Bush Size | = | 1610 [Click Here] |
| F Type - Max Bore | = | 42mm |
| F Type - Max Bore | = | 1-5/8 inch |
| F Type - Shoulder Width D | = | 18.5mm |
| F Type - Hub Width C | = | 26.5mm |
| Max Power at 100 rpm | = | 1.68 kW |
| Max Power at 200 rpm | = | 3.35 kW |
| Max Power at 400 rpm | = | 6.7 kW |
| Max Power at 600 rpm | = | 10.1 kW |
| Max Power at 720 rpm | = | 12.1 kW |
| Max Power at 800 rpm | = | 13.4 kW |
| Max Power at 960 rpm | = | 16.1 kW |
| Max Power at 1200 rpm | = | 20.1 kW |
| Max Power at 1440 rpm | = | 24.1 kW |
| Max Power at 1600 rpm | = | 26.8 kW |
| Max Power at 1800 rpm | = | 30.2 kW |
| Max Power at 2000 rpm | = | 33.5 kW |
| Max Power at 2200 rpm | = | 36.9 kW |
| Max Power at 2400 rpm | = | 40.2 kW |
| Max Power at 2600 rpm | = | 43.6 kW |
| Max Power at 2880 rpm | = | 48.3 kW |
| Max Power at 3000 rpm | = | 50.3 kW |
| Max Power at 3600 rpm | = | 60.3 kW |
| Nominal Torque (Nm) | = | 160 Nm |
| Max Torque | = | 360 Nm |
1 Dimension L where 2 x F type flanges are used together, or and F type flange with a H type flange or where 2 x H type flanges are used together.
