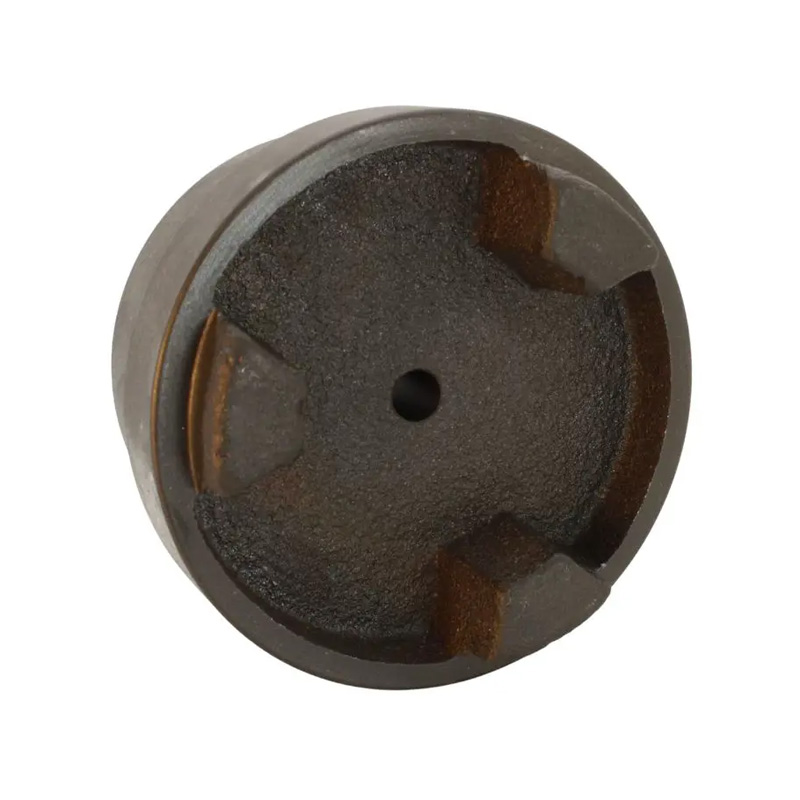

Major Branded HRC70B-MB HRC Coupling Single Flange Pilot Bored Max Bore 32mm
Equivalent to: HRC70B DRC70B
£7.77
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £6.92 each |
| 19+ | £6.53 each |
| 29+ | £6.45 each |
| 39+ | £6.37 each |
| 49+ | £6.30 each |
| 74+ | £6.22 each |
| 99+ | £5.83 each |
| 199+ | £5.75 each |
| 249+ | £5.67 each |
| 499+ | £5.60 each |
| 999+ | £5.44 each |
In Stock
| Nominal Torque | = | 31 Nm |
| Overall Diameter A | = | 69mm |
| Hub Diameter B | = | 60mm |
| Assembled Length F | = | 25.5mm |
| Insert Bore Dia E | = | 31mm |
| Insert Width G | = | 18.5mm |
| Parallel Misalignment | = | 0.3mm |
| Weight | = | 0.6kg |
| L width | = | 65.5mm3 |
| Max Bore | = | 32mm |
| Pilot Bore (Approx) | = | 8mm |
| Keyway Screw Size | = | M6mm |
| Shoulder Width D | = | 20mm |
| Hub Width C | = | 23.5mm |
| Max Power at 100 rpm | = | 0.33 kW |
| Max Power at 200 rpm | = | 0.66 kW |
| Max Power at 400 rpm | = | 1.32 kW |
| Max Power at 600 rpm | = | 1.98 kW |
| Max Power at 720 rpm | = | 2.37 kW |
| Max Power at 800 rpm | = | 2.64 kW |
| Max Power at 960 rpm | = | 3.17 kW |
| Max Power at 1200 rpm | = | 3.96 kW |
| Max Power at 1440 rpm | = | 4.75 kW |
| Max Power at 1600 rpm | = | 5.28 kW |
| Max Power at 1800 rpm | = | 5.94 kW |
| Max Power at 2000 rpm | = | 6.6 kW |
| Max Power at 2200 rpm | = | 7.26 kW |
| Max Power at 2400 rpm | = | 7.92 kW |
| Max Power at 2600 rpm | = | 8.58 kW |
| Max Power at 2880 rpm | = | 9.5 kW |
| Max Power at 3000 rpm | = | 9.9 kW |
| Max Power at 3600 rpm | = | 11.9 kW |
| Nominal Torque (Nm) | = | 31.5 Nm |
| Max Torque | = | 72 Nm |
1 Dimension L where 2 x F type flanges are used together, or and F type flange with a H type flange or where 2 x H type flanges are used together.
2 Dimension L where an F type flange is used with a B type flange or a H Type flange is used with a B type flange.
3 Dimension L where a B type flange is used on both sides.
