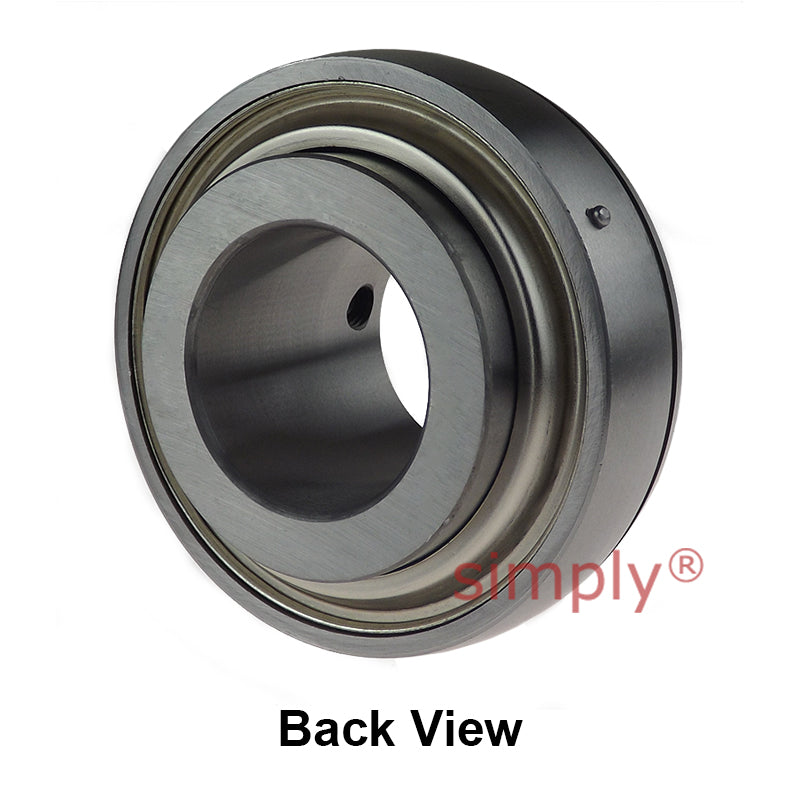

Challenge UCX05-16 Imperial Insert with Grub Screws with 1 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Extreme protection triple seals
- Ideal for outdoor / agricultural use
- Pre-greased / re-lubricatable
- Genuine Challenge brand
Equivalent to: UCX.05-16
£22.38
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £19.92 each |
| 5+ | £18.80 each |
| 9+ | £18.58 each |
| 19+ | £18.35 each |
| 49+ | £18.13 each |
| 74+ | £17.90 each |
| 99+ | £16.78 each |
| 199+ | £16.56 each |
| 249+ | £16.34 each |
| 499+ | £16.11 each |
| 999+ | £15.67 each |
In Stock
| Shaft Diameter d | = | 1 inch |
| Outside Diameter D | = | 62mm |
| Overall Width Bi | = | 38.1mm |
| Inner Race Width Be | = | 19mm |
| Back of Bearing to Centre Line n | = | 15.9mm |
| Front of Bearing to Centre Line m | = | 22.2mm |
| Dimension G | = | 5mm |
| Grub Screws x 2 | = | 1/4 - 28UNF inch |
| Load Rating (Dynamic) | = | 1520kg |
| Load Rating (Static) | = | 1020kg |
| Max Speed | = | 3400 rev/min |
| Working Temperature | = | -30°C to +120°C |
