SKU: LR6001-NPPU-INA

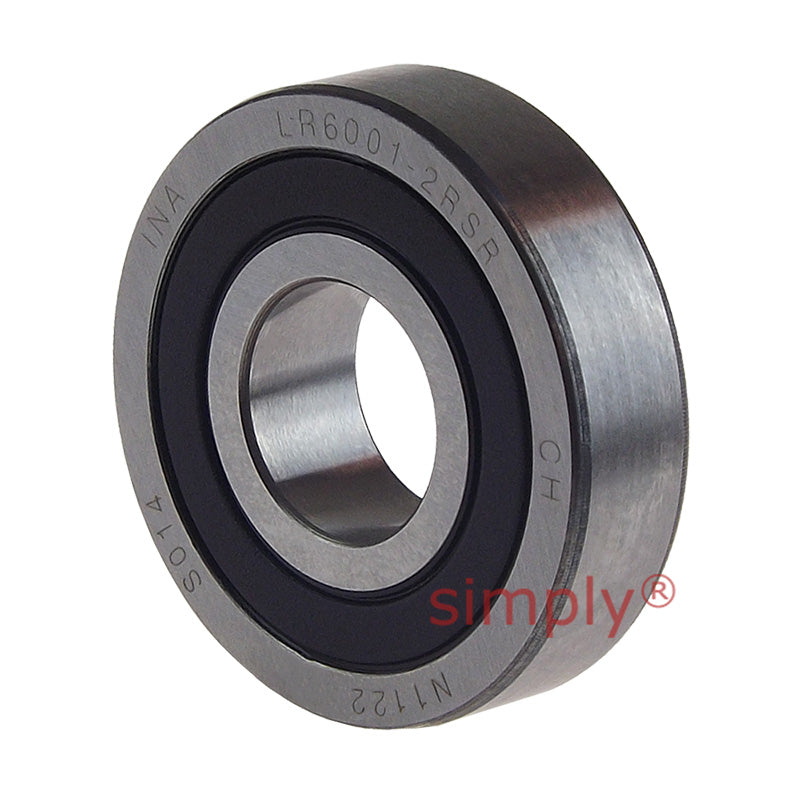

INA LR6001NPPU Rubber Sealed Track Roller with Crowned Outer Race 12x30x8mm
INA LR6001NPPU Rubber Sealed Track Roller with Crowned Outer Race 12x30x8mm
Regular price
£21.01
ex VAT£25.21inc. VAT
Regular price
Sale price
£21.01
ex VAT£25.21
inc. VAT
Equivalent to: LR6001-2RSR LR6001-NPPU LR60012RS LR6001NPPU
In stock
Price Break
3+
£18.70
5+
£17.65
9+
£17.44
19+
£17.23
49+
£17.02
74+
£16.81
99+
£15.76
199+
£15.55
249+
£15.34
499+
£15.13
999+
£14.71
Description
Description
Rubber Sealed Track Roller Bearing with a Spherical Outer: This range of self-retaining track roller bearings have a crowned outer raceways with thicker walls. They are able to take on high radial forces and can support axial force in both directions. This 2RSR range has lip seals on both sides giving radial sealing action.
Benefits: Maintenance free, capable of withstanding high radial and axial forces
Equivalent: LR6001-2RSR LR6001-NPPU LR60012RS LR6001NPPU
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 30mm
- Width:
- 8mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 12mm |
|---|---|
| D | 30mm |
| C | 8mm |
| d<sub>2</sub> | 16.6mm |
| Crowning Radius (R) | 500mm |
| r<sub>min</sub> | 0.3mm |
| Mass (m) | 0.03kg |
| Dynamic Load (C<sub>r w</sub>) | 5300N |
| Static Load (C0<sub>r w</sub>) | 2750N |
| Fatigue Limit Load (C<sub>ur w</sub>) | 144N |
| Speed (n<sub>D G</sub>) | 15000 1/min |
