SKU: PSMF202820A51-SKF

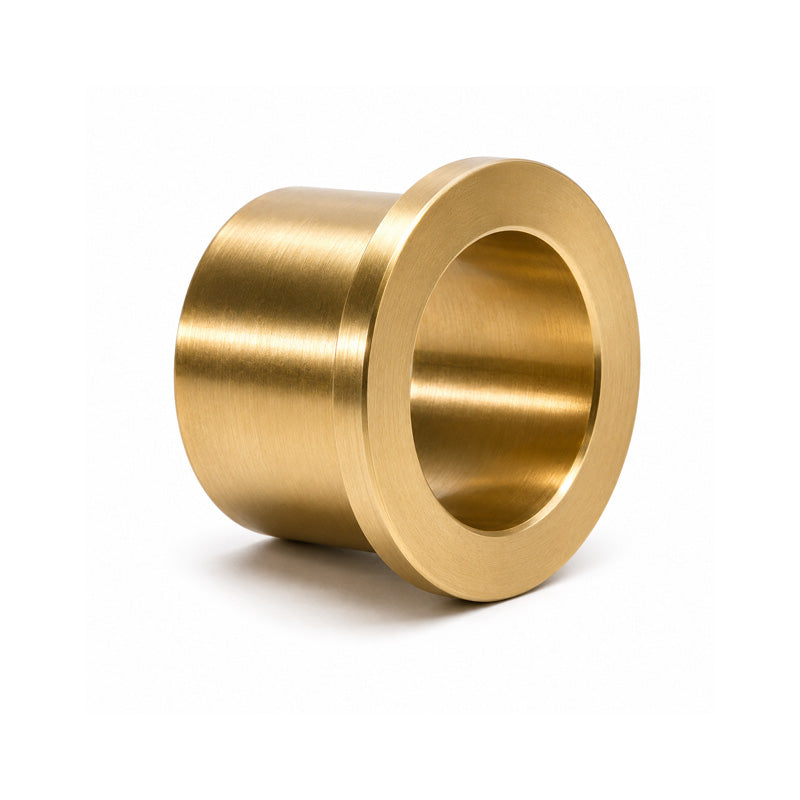

SKF PSMF202820A51 Imperial Flanged Sintered Bronze Bush 0.787x1.102x0.787 inch
SKF PSMF202820A51 Imperial Flanged Sintered Bronze Bush 0.787x1.102x0.787 inch
Regular price
£15.64
ex VAT£18.77inc. VAT
Regular price
Sale price
£15.64
ex VAT£18.77
inc. VAT
In stock
Price Break
9+
£13.92
19+
£13.14
29+
£12.98
39+
£12.83
49+
£12.67
69+
£12.51
99+
£11.73
199+
£11.57
249+
£11.42
499+
£11.26
999+
£10.95
Description
Description
PSM/PSMF Bronze Bushing: SKF Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. SKF offers a full range of both plain and flanged cylindrical bushings. SKF Sintered Bronze bushings are most
suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm = 0.787 inch
- Outside Diameter:
- 28mm = 1.102 inch
- Length:
- 20mm = 0.787 inch
Technical
Technical
| d | 0.787 inch |
|---|---|
| D | 1.102 inch |
| B | 0.787 inch |
| D1 | 1.38 inch |
| B1 | 0.12 inch |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 1450.377 psi |
| Specific Static Load Factor ( K0 ) | 2900.755 psi |
| Permissable Sliding Velocity ( v ) | min. 49.213 ft/min |
| Permissable Sliding Velocity ( v ) | max. 984.252 ft/min |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Imperial Weight | 0.06 lbs |
