SKU: PSMF304030A51-SKF

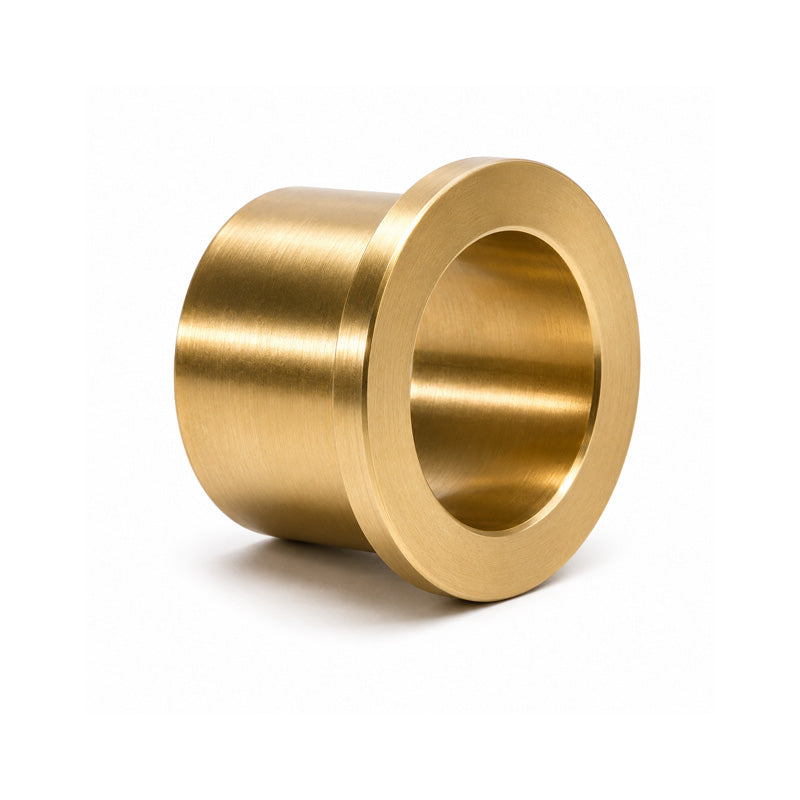

SKF PSMF304030A51 Imperial Flanged Sintered Bronze Bush 1.181x1.575x1.181 inch
SKF PSMF304030A51 Imperial Flanged Sintered Bronze Bush 1.181x1.575x1.181 inch
Regular price
£26.80
ex VAT£32.16inc. VAT
Regular price
Sale price
£26.80
ex VAT£32.16
inc. VAT
In stock
Price Break
9+
£23.86
19+
£22.52
29+
£22.25
39+
£21.98
49+
£21.71
69+
£21.44
99+
£20.10
199+
£19.83
249+
£19.57
499+
£19.30
999+
£18.76
Description
Description
PSM/PSMF Bronze Bushing: SKF Sintered Bronze cylindrical bushings are all self-lubricating and maintenance-free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications. SKF offers a full range of both plain and flanged cylindrical bushings. SKF Sintered Bronze bushings are most
suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
Uses of Application electrical equipment, household equipment, printing machinery, machine tools
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm = 1.181 inch
- Outside Diameter:
- 40mm = 1.575 inch
- Length:
- 30mm = 1.181 inch
Technical
Technical
| d | 1.181 inch |
|---|---|
| D | 1.575 inch |
| B | 1.181 inch |
| D1 | 1.97 inch |
| B1 | 0.16 inch |
| Tolerance shaft | h8 |
| Tolerance housing | H7 |
| Specific Dynamic Load Factor ( K ) | 1450.377 psi |
| Specific Static Load Factor ( K0 ) | 2900.755 psi |
| Permissable Sliding Velocity ( v ) | min. 49.213 ft/min |
| Permissable Sliding Velocity ( v ) | max. 984.252 ft/min |
| Coefficient of Friction ( y ) | min. 0.05 |
| Coefficient of Friction ( y ) | max. 0.1 |
| Imperial Weight | 0.203 lbs |
