Average Rating (1 Reviews)

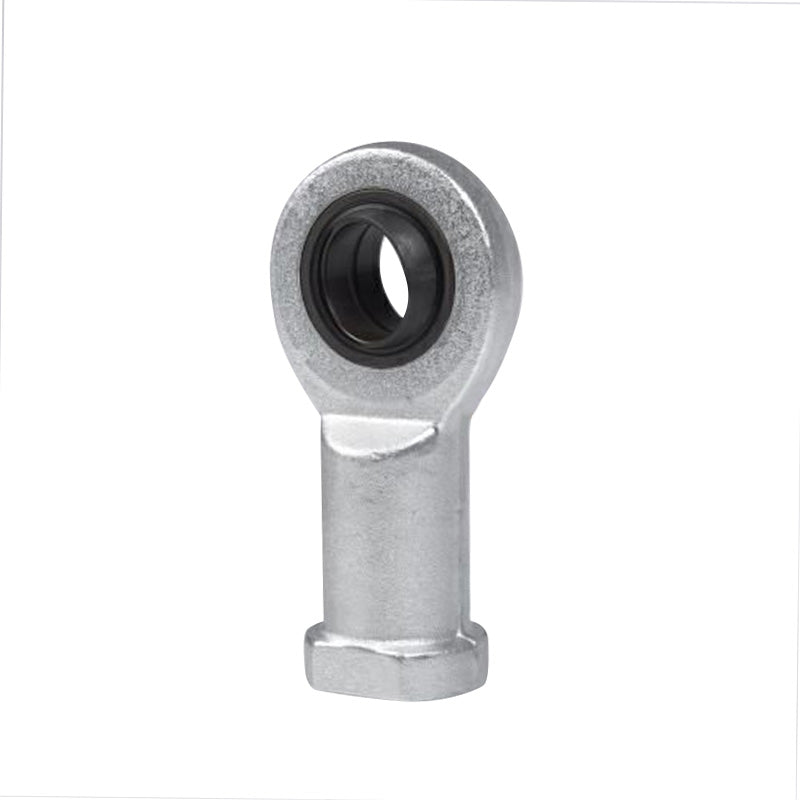

Durbal DGIL17-UK-2RS Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M16 Thread
- Suitable for use with unilaterally acting loads
- Good corrosion resistance
- Lip seals to prevent the penetration of dirt
Contact Us for Availability
Limited Availability
Please Enquire
| Seals | = | 2 Rubber Seals |
| Thread Direction | = | Left |
| d | = | 17mm |
| d1 | = | 20mm |
| d2 | = | 46mm |
| d3 | = | 24mm |
| d4 | = | 30mm |
| dk | = | 25mm |
| G (Thread) | = | M16mm |
| B | = | 14mm |
| C1 | = | 11mm |
| l3 | = | 34mm |
| l4 | = | 90mm |
| l5 | = | 10mm |
| l7 | = | 23mm |
| W | = | 27mm |
| h1 | = | 67 |
| tilt angle α | = | 10 deg |
| weight | = | 0.22kg |
| basic load rating dyn C | = | 13.4 kN |
| basic load rating stat Co | = | 36 kN |
| radial clearance CN | = | 0-40 µm |
