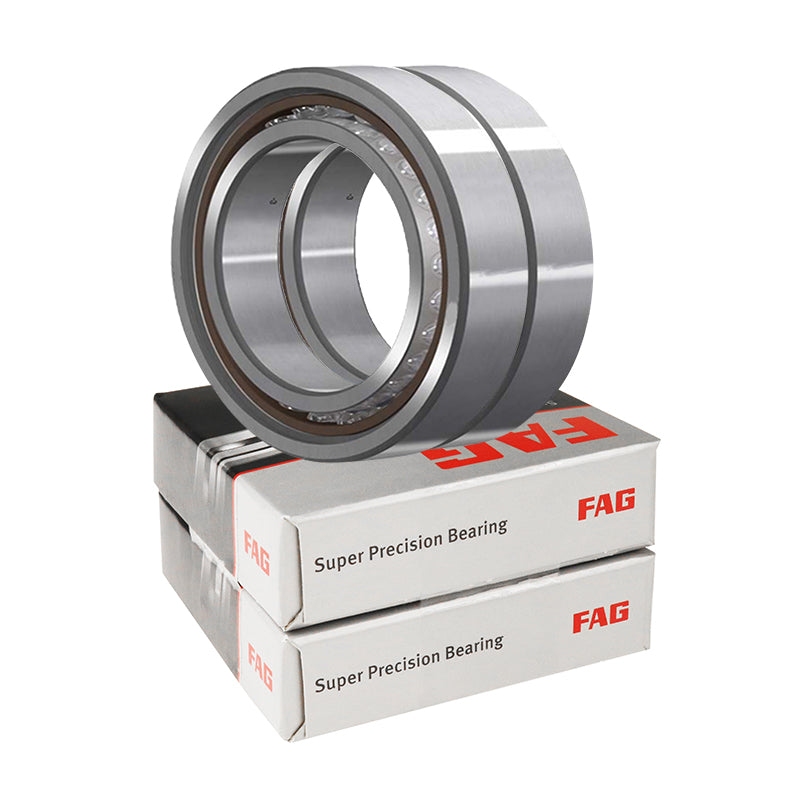

FAG B71938CTP4SDUL Super Precision Angular Contact Spindle Bearing 190x260x33mm (Set of 2)
- World-renowned FAG quality
- High precision
- Excellent speed ability
- High rigidity
- Excellent vibration behaviour
£5157.94
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £4590.56 each |
| 5+ | £4332.67 each |
| 10+ | £4281.09 each |
| 25+ | £4229.51 each |
| 49+ | £4177.93 each |
| 74+ | £4126.35 each |
| 99+ | £3868.45 each |
| 199+ | £3816.87 each |
| 249+ | £3765.29 each |
| 499+ | £3713.71 each |
| 999+ | £3610.56 each |
In Stock
| Bearing dimensions | ||
| d | = | 190mm |
| D | = | 260mm |
| B | = | 33mm |
| rs min | = | 2mm |
| r1s min | = | 1mm |
| Abutment dimensions | ||
| da min | = | 202 mm |
| Da min | = | 247mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
| BN | = | 218.3mm |
| BN | = | 166mm |
| SB | = | 212 kN |
| Speeds, weights and loads | ||
| Speed in grease | = | 4300 rpm |
| Speed in oil | = | 6300 rpm |
| Preloading force Fv L | = | 894 N |
| Preloading force Fv M | = | 2996 N |
| Preloading force Fv H | = | 6210 N |
| Unloading force KaE L | = | 2736 N |
| Unloading force KaE M | = | 9846 N |
| Unloading force KaE H | = | 21803 N |
| Axial rigidity Ca L | = | 167.2 N/μm |
| Axial rigidity Ca M | = | 283.7 N/μm |
| Axial rigidity Ca H | = | 407.1 N/μm |
| Weight | = | 4.4kg |
