SKU: 70USOC15 .A15.I/1.L-UKF

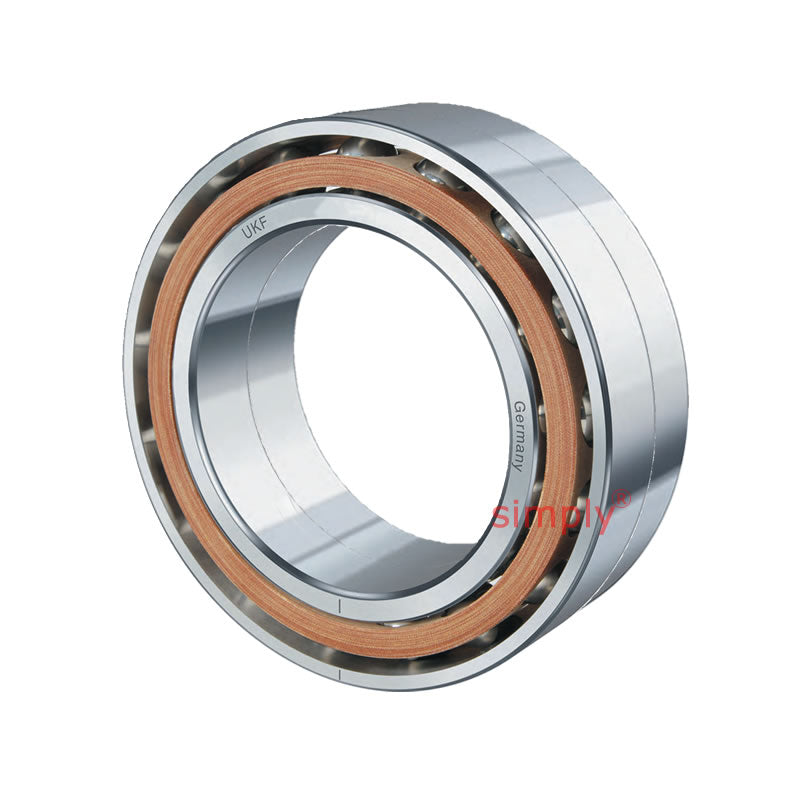

UKF 70USOC15A15I1L Super Precision Double Row Angular Contact Spindle Bearing 15x32x18mm

Name: UKF 70USOC15A15I1L Super Precision Double Row Angular Contact Spindle Bearing 15x32x18mm
Brand: UKF
SKU: 70USOC15 .A15.I/1.L-UKF
Price: 260.90 GBP
Availability: InStock

£260.90 ex VAT£313.08inc. VAT

£260.90 ex VAT£313.08 inc. VAT

Sale Sold out

Equivalent to: 70USOC15 .A15.I/1.L

In stock

Price Break

3+ £232.20

5+ £219.15

10+ £216.54

25+ £213.93

49+ £211.33

74+ £208.72

99+ £195.67

199+ £193.06

249+ £190.45

499+ £187.84

999+ £182.63

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Equivalent: 70USOC15 .A15.I/1.L

Brand / Quality:: UKF - High Quality
Inside Diameter:: 15mm
Outside Diameter:: 32mm
Width:: 18mm
Seals / Shields:: None
Style:: Double Row Angular Contact Spindle Bearings
Contact Angle:: 15 Degree contact angle
Bearing Preload:: Light preload

Technical

d	15mm
D	32mm
B	18mm
Dynamic load Co	3960 N
Static load C	7700 N
Speed in Grease	52500 rpm
Speed in Oil	81200 rpm
r<sub>a</sub>	0.3mm
d<sub>a</sub>	18.5mm
D<sub>a</sub>	28.5mm
Axial Preload F<sub>v</sub> L	40 N
Axial Preload F<sub>v</sub> M	130 N
Axial Preload F<sub>v</sub> S	260 N
Axial Rigidity R<sub>a</sub> L	37 N/μm
Axial Rigidity R<sub>a</sub> M	55 N/μm
Axial Rigidity R<sub>a</sub> S	69 N/μm
Radial Rigidity R<sub>r</sub> L	150 N/μm
Radial Rigidity R <sub>r</sub> M	219 N/μm
Radial Rigidity <sub>r</sub> S	276 N/μm
Weight	0.05 kg
