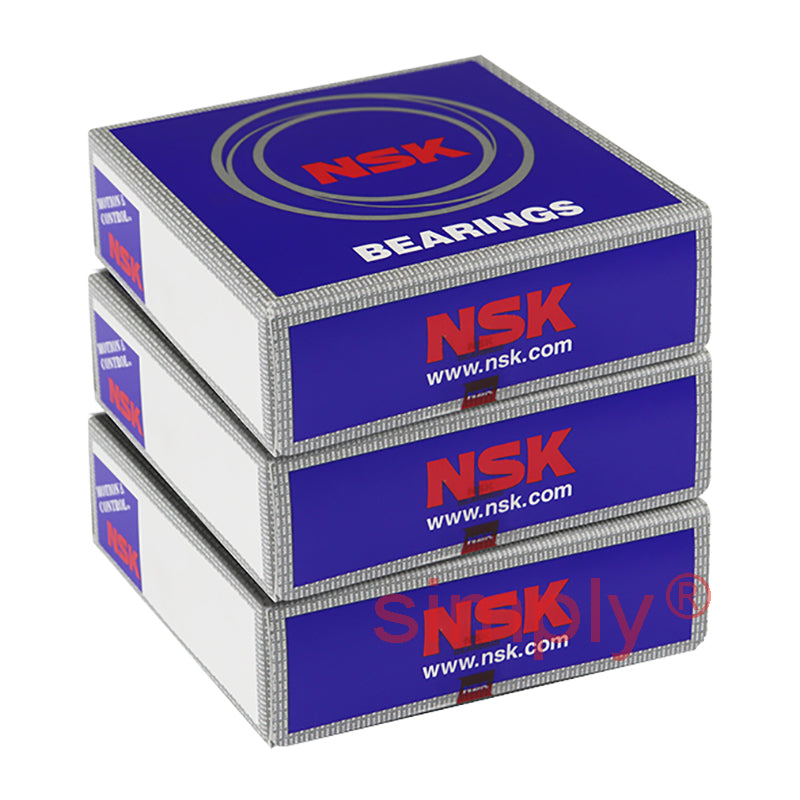

NSK 7914A5TRDUDMP3 Super Precision Angular Contact Spindle Bearing 70x100x16mm (Set of 3)
- World-renowned NSK quality
- High precision
- Excellent speed ability
- High rigidity
- Excellent vibration behaviour
£778.19
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £692.59 each |
| 5+ | £653.68 each |
| 10+ | £645.90 each |
| 25+ | £638.11 each |
| 49+ | £630.33 each |
| 74+ | £622.55 each |
| 99+ | £583.64 each |
In Stock
| Bearing dimensions | ||
| d | = | 70mm |
| D | = | 100mm |
| B | = | 16mm |
| rmin | = | 1mm |
| r1min | = | 0.6mm |
| Loads angles and speeds | ||
| Cr | = | 27.9Kn |
| Cor | = | 26.3kN |
| Axial load Kn | = | 20.3 kN |
| Contact angle | = | 25 degrees |
| Factor fo | = | - |
| Effective diameter | = | 27.8mm |
| Max speed in grease | = | 11800 rpm |
| Max speed in oil | = | 17700 rpm |
| Fitting dimensions | ||
| da min | = | 76mm |
| Da max | = | 94mm |
| Db max | = | 95mm |
| ra max | = | 1mm |
| rb max | = | 0.5mm |
| Weight | = | 1.023kg |
