SKU: ES206-19G2-SNR

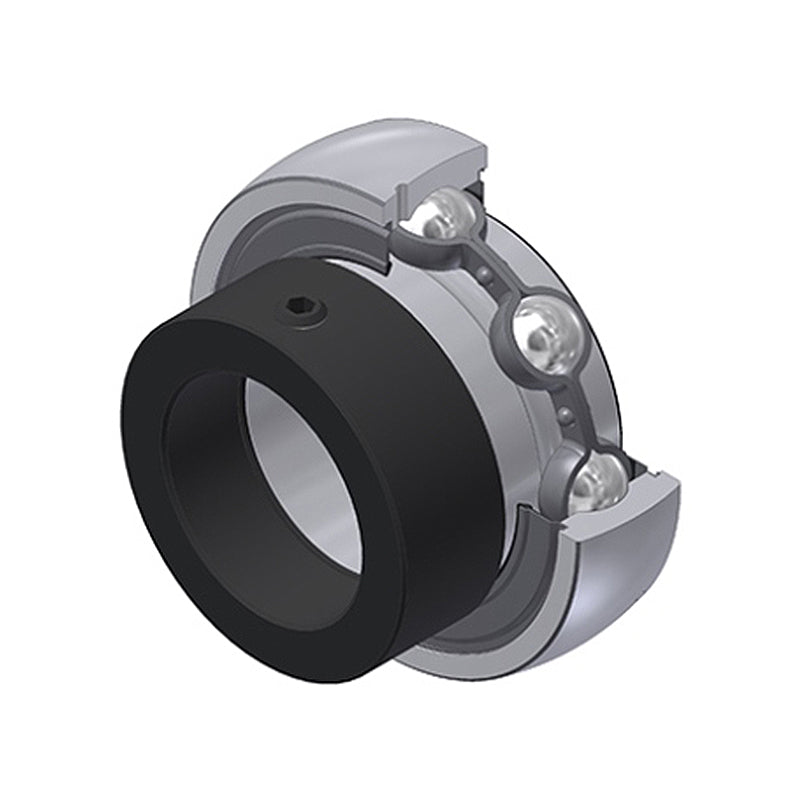

SNR ES206-19G2 Imperial Flatback Spherical Outer Bearing Insert 1-3/16 inch Bore 62mm Outside Diameter with Eccentric Collar
SNR ES206-19G2 Imperial Flatback Spherical Outer Bearing Insert 1-3/16 inch Bore 62mm Outside Diameter with Eccentric Collar
Regular price
£17.67
ex VAT£21.20inc. VAT
Regular price
Sale price
£17.67
ex VAT£21.20
inc. VAT
Equivalent to: ES206-19
In stock
Price Break
3+
£15.73
5+
£14.85
9+
£14.67
19+
£14.49
49+
£14.32
74+
£14.14
99+
£13.26
199+
£13.08
249+
£12.90
499+
£12.73
999+
£12.37
Description
Description
SNR ES Flatback Spherical Outer Bearing Insert with Eccentric Collar: This bearing insert is a standard version designed for various applications. Each steel insert features a single lip seal on both sides and a narrow inner ring design. It includes a zinc-coated sheet steel retainer with a vulcanized NBR seal, with the axially preloaded seal lip positioned behind a protective edge. Suitable for normal environmental conditions, this bearing insert supports medium to high rotation speeds.
Benefits: High-quality brand, high-performance, precision-engineered
Equivalent: ES206-19
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- 5/16-24UNF
- Inside Diameter:
- 30.163mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 62mm
- Width:
- 35.7mm
- Style:
- ES
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| d | 30.163mm |
| D | 62mm |
| C | 16mm |
| B | 23.8mm |
| B1 | 35.7mm |
| B2 | 15.9mm |
| d1 | 44.1mm |
| S | 9mm |
| m | 6mm |
| C1 | 5mm |
| r min | 0.6mm |
| G | 5/16-24UNF |
| Wrench Size | 5/32 inch |
| Set screw torque | 8 Nm |
| Min Temp | -20 deg C |
| Max Temp | 100 deg C |
| Dynamic load rating C | 19.5kN |
| Static load rating C0 | 11.2kN |
| Weight | 0.3kg |
