• NTN 6808JRLLB/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 40x52x7mm
1 1

SKU: 6808JRLLB/2AS-NTN

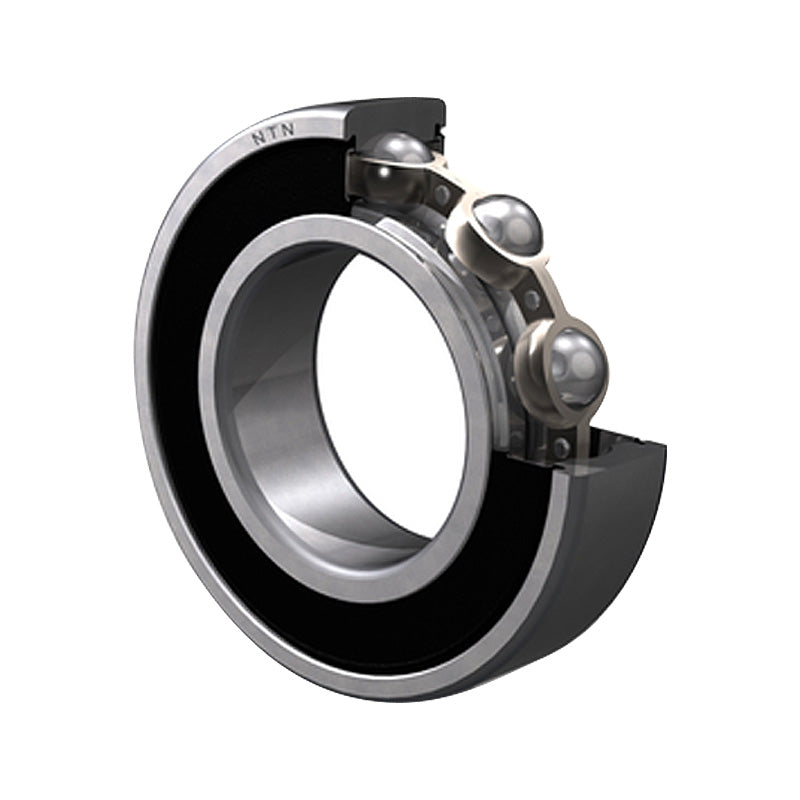

NTN 6808JRLLB/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 40x52x7mm

NTN 6808JRLLB/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 40x52x7mm
£36.49 ex VAT£43.79inc. VAT
£36.49 ex VAT£43.79 inc. VAT
Sale Sold out

Equivalent to: 6808JRLLBCM 61808JRLLBCM 6808JRLLB 61808JRLLB 68082NKE 6808VV 68082RSL 68082RZ

In stock

Price Break
3+ £32.48
5+ £30.65
10+ £30.29
25+ £29.92
49+ £29.56
74+ £29.19
99+ £27.37
199+ £27.00
249+ £26.64
499+ £26.27
999+ £25.54
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life


Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Equivalent: 6808JRLLBCM 61808JRLLBCM 6808JRLLB 61808JRLLB 68082NKE 6808VV 68082RSL 68082RZ
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Outside Diameter:
52mm
Width:
7mm
Seals / Shields:
Low Friction
Clearance:
* Standard
Technical
--- Bearing dimensions
d 40mm
D 52mm
B 7mm
r<sub>s</sub> min 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 5.65 kN
C<sub>or</sub> 4.4 kN
C<sub>u</sub> 0.291 kN
f<sub>0</sub> 16.3 kN
Grease 12000 rpm
Oil 14000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 42mm
d<sub>a</sub> Max. 43mm
D<sub>a</sub> Max. 50mm
r<sub>as</sub> Max. 0.3mm
Weight 0.033 kg
