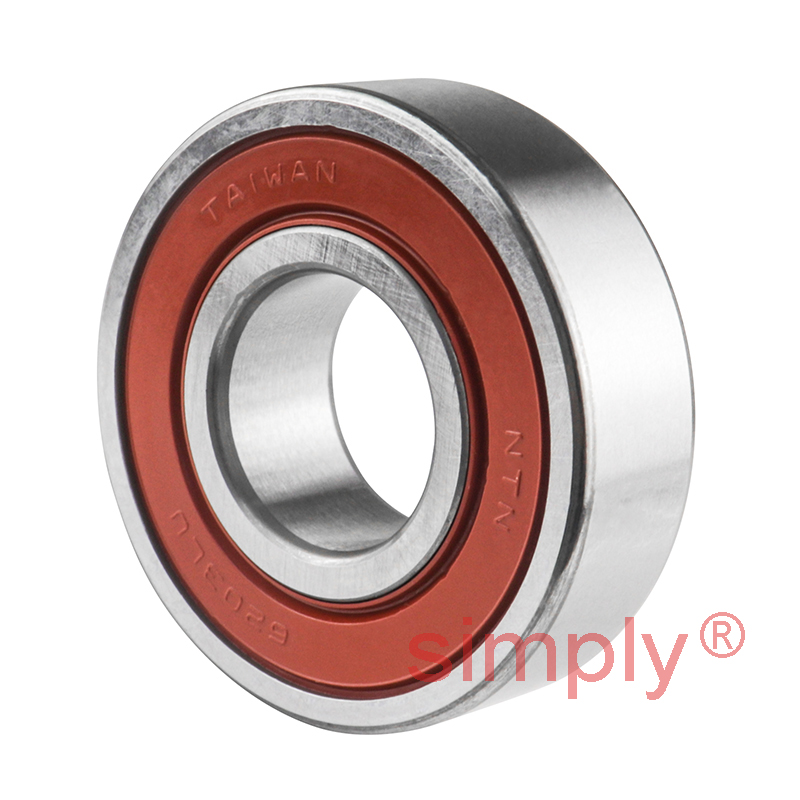

NTN 6203LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 17x40x12mm
- World-renowned NTN quality
- Premium Japanese Manufacturer
- Highest Quality Assured
- Cost effective solution
Equivalent to: 6203LLUCM 6203NSE 6203DU 6203RS 6203RSH 6203P 6203RSR 6203LU 62032NSE 6203DDU 62032RS 6203-2RS 62032RS1 62032RSH 6203PP 62032RSR 6203LLU 6203RS2 62032RS2 62032RSL 6203LFS 6203EE 1203R 203SZ 203N 203P Z9503
£6.45
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £5.74 each |
| 5+ | £5.42 each |
| 10+ | £5.35 each |
| 25+ | £5.29 each |
| 49+ | £5.22 each |
| 74+ | £5.16 each |
| 99+ | £4.84 each |
| 199+ | £4.77 each |
| 249+ | £4.71 each |
| 499+ | £4.64 each |
| 999+ | £4.52 each |
In Stock
| Bearing dimensions | ||
| d | = | 17mm |
| D | = | 40mm |
| B | = | 12mm |
| rs min | = | 0.6mm |
| Loads angles and speeds | ||
| Cr | = | 10.6 kN |
| Cor | = | 4.6 kN |
| Cu | = | 0.355 kN |
| f0 | = | 12.8 kN |
| Speed | = | 12000 rpm |
| Fitting Dimensions | ||
| da Min. | = | 21mm |
| da Max. | = | 23mm |
| Da Max. | = | 36mm |
| ras Max. | = | 0.6mm |
| Weight Kg | = | 0.066 kg |
