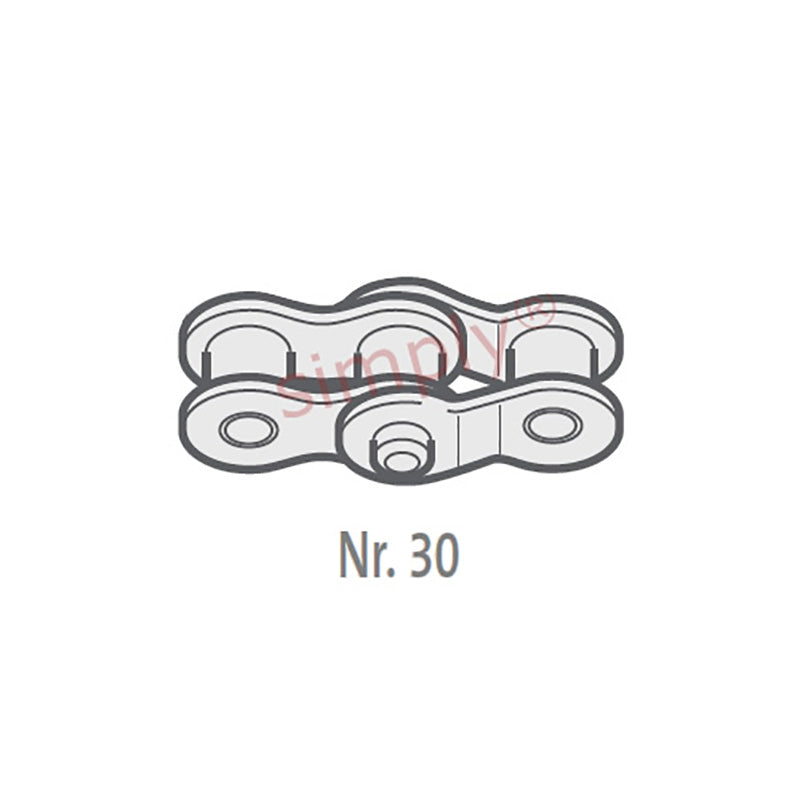

Renold SYNO 10B-1-NO30 BS Simplex Chain Double Cranked Link 5/8 inch Pitch
£27.73
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 2+ | £24.68 each |
| 5+ | £23.29 each |
| 10+ | £23.02 each |
| 29+ | £22.74 each |
| 49+ | £22.46 each |
| 75+ | £22.18 each |
| 100+ | £20.80 each |
| 200+ | £20.52 each |
| 250+ | £20.24 each |
| 500+ | £19.97 each |
| 1000+ | £19.41 each |
In Stock
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H1) | = | 18.8mm |
| Connecting Link Extension max (J) | = | 2.5mm |
| ISO606 Tensile Strength min | = | 22200 N |
| Weight | = | 0.009kg/m |
