SKU: 16B-1-SNX-NO30-RENOLD
Renold SYNO 16B-1-NO30 BS Simplex Chain Double Cranked Link 1 inch Pitch
Renold SYNO 16B-1-NO30 BS Simplex Chain Double Cranked Link 1 inch Pitch
Regular price
£68.52
ex VAT£82.22inc. VAT
Regular price
Sale price
£68.52
ex VAT£82.22
inc. VAT
In stock
Price Break
10+
£60.98
19+
£57.56
29+
£56.87
39+
£56.19
49+
£55.50
74+
£54.82
99+
£51.39
199+
£50.70
249+
£50.02
499+
£49.33
999+
£47.96
Description
Description

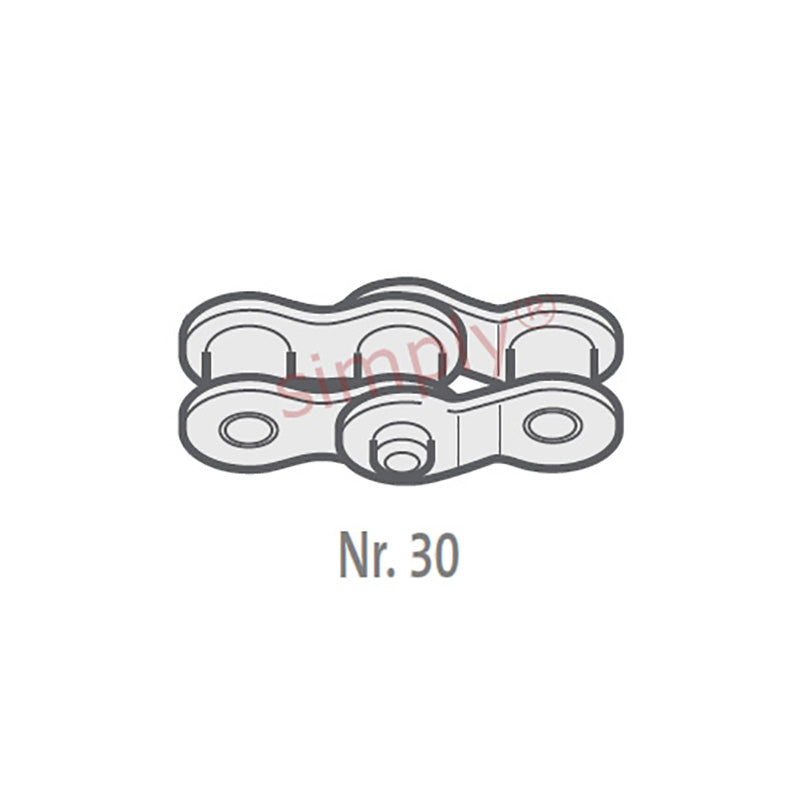

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.08mm |
| Plate Width Inner max (E) | 4.12mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H1) | 34.9mm |
| Connecting Link Extension max (J) | 2.2mm |
| ISO606 Tensile Strength min | 60000 N |
| Weight | 0.067kg/m |
